Rear Console Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble in the order shown in the figure.

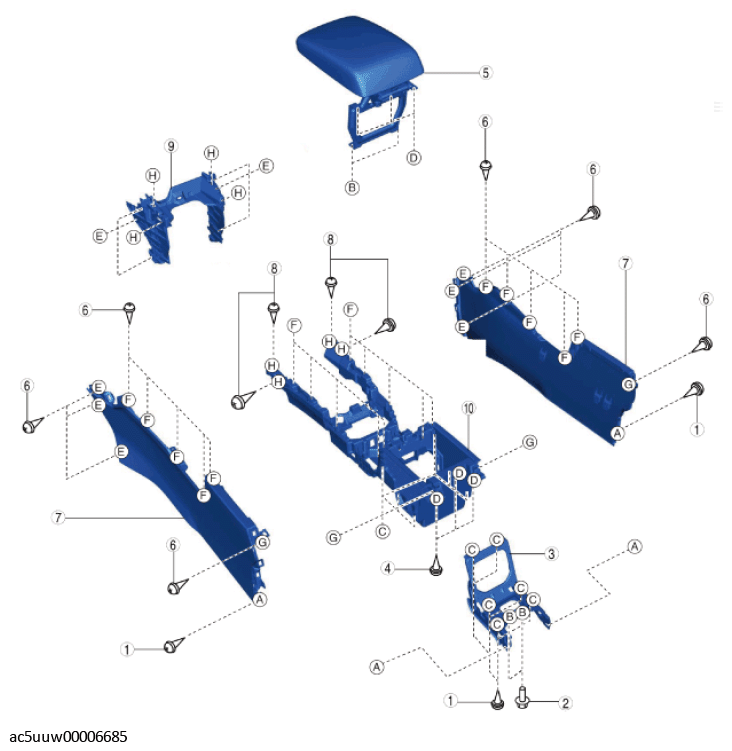

    Fig 1: Rear Console Disassembly
    G11427999Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Screw
    2 Bolt
    3 Rear console bracket No. 2
    (See CONSOLE LID REMOVAL/INSTALLATION .)
    4 Screw
    5 Console lid
    (See CONSOLE LID REMOVAL/INSTALLATION .)
    6 Screw
    7 Side panel
    (See Side Panel Removal Note .)
    8 Screw
    9 Rear console cover
    10 Rear console box
  2. Assemble in the reverse order of disassembly.
