Audio Amplifier Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Slide the seat rearward (RH).
Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the bolts.

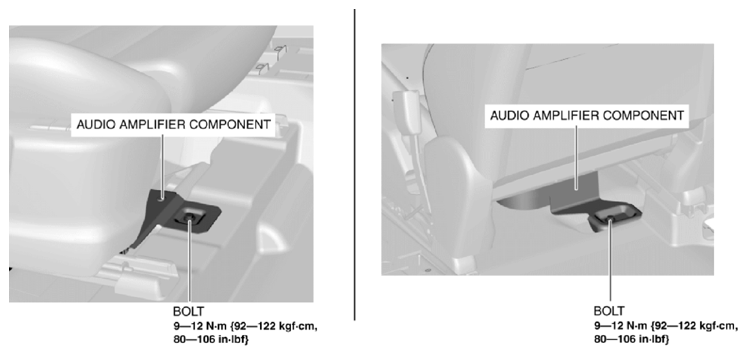

Fig 1: Removing Audio Amplifier Component Bolts
Courtesy of MAZDA MOTORS CORP.
Disconnect the connectors.

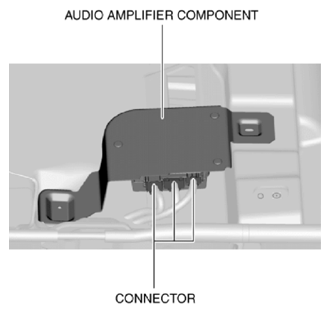

Fig 2: Disconnecting Audio Amplifier Component Connectors
Courtesy of MAZDA MOTORS CORP.
Remove the audio amplifier component.
Remove the nuts.

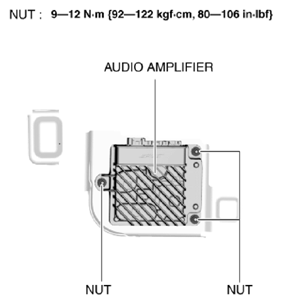

Fig 3: Removing Audio Amplifier Nuts
Courtesy of MAZDA MOTORS CORP.
Remove the audio amplifier.
Install in the reverse order of removal.
