Audio Unit Removal/Installation: Removal

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
2. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
3. Center panel (See CENTER PANEL REMOVAL/INSTALLATION .)
Remove the bolt.

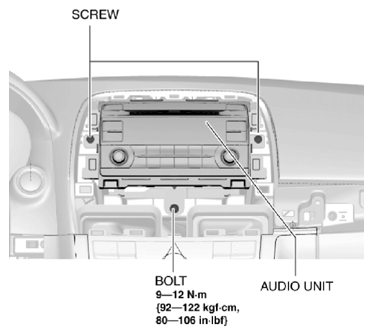

Fig 1: Removing Audio Unit Screws
Courtesy of MAZDA MOTORS CORP.
Remove the screws.
NOTE:

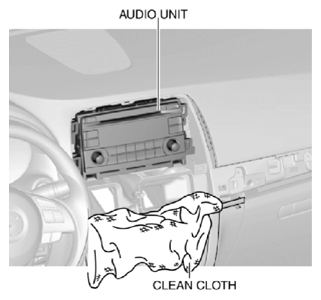

- When removing the audio unit, the audio unit could interfere with the climate control unit and scratch the climate control unit. Perform the servicing by spreading a cloth in the position indicated in the figure.

  Fig 2: Identifying Audio Unit
  Courtesy of MAZDA MOTORS CORP.

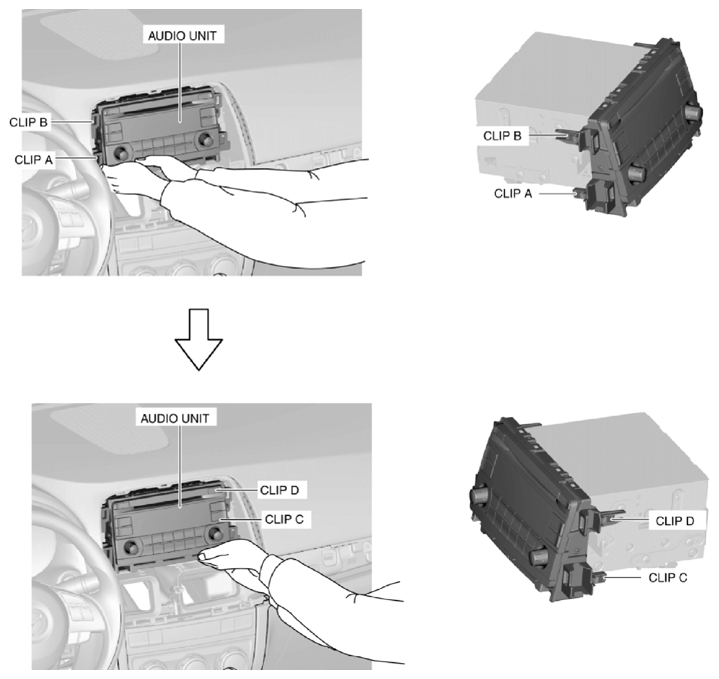

Hold the audio unit in the position shown in the figure and pull it outward to disengage clips A, B, C, and D from the instrument panel.

Fig 3: Holding Audio Unit
Courtesy of MAZDA MOTORS CORP.
Disconnect the connectors.

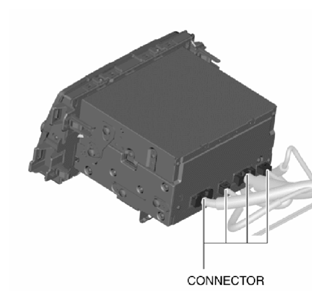

Fig 4: Disconnecting Connectors
Courtesy of MAZDA MOTORS CORP.
Remove the audio unit.
