AudioPilot® MICROPHONE REMOVAL/INSTALLATION

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

AudioPilot® is a registered trademark of Bose® Corporation.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
2. Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
3. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
4. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
5. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
6. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
7. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R] .)
8. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
9. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
10. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
11. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
12. Hood release lever (See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION .)
13. Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
Disconnect the connector.
Remove the nut.

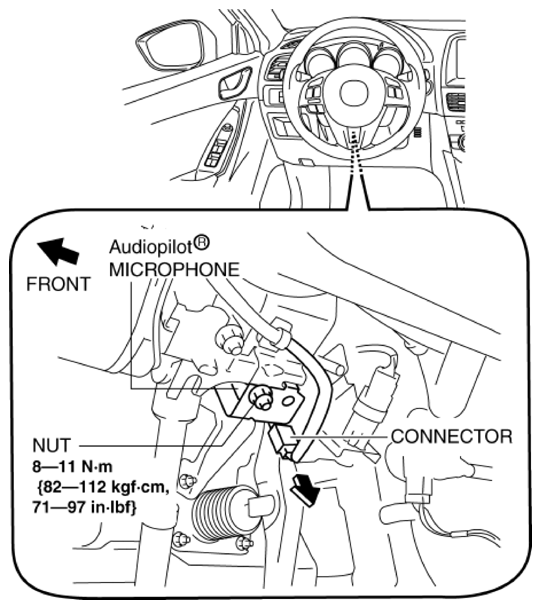

Fig 1: Disconnecting Connector
Courtesy of MAZDA MOTORS CORP.
Remove the AudioPilot ® microphone.
Install in the reverse order of removal.
