Cd Player Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    2. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    3. Center panel (See CENTER PANEL REMOVAL/INSTALLATION .)
    4. Center display (See CENTER DISPLAY REMOVAL/INSTALLATION .)
    5. Connectivity master unit (CMU) (See CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION .)
  3. Remove the screws.

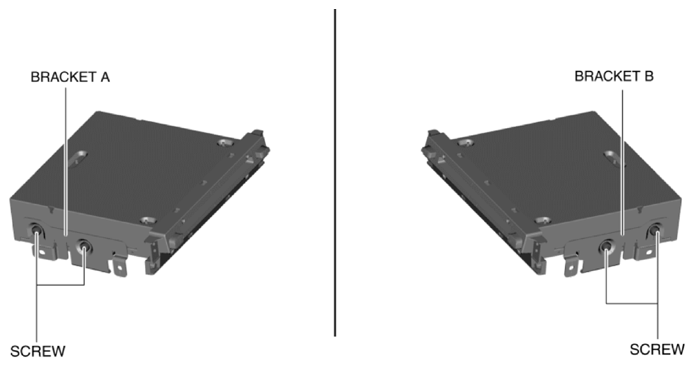

    Fig 1: Removing Screws
    G10939494Courtesy of MAZDA MOTORS CORP.
  4. Remove the brackets A and B.
  5. Remove the CD player.
  6. Install in the reverse order of removal.
