Center Display Removal/Installation: Removal

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    2. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    3. Center panel (See CENTER PANEL REMOVAL/INSTALLATION .)
  3. Remove the bolt.

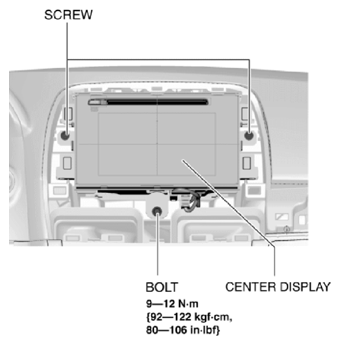

    Fig 1: Removing Center Display Screws
    G10939471Courtesy of MAZDA MOTORS CORP.
  4. Remove the screws.
    NOTE:
    • When removing the center display, the center display could interfere with the climate control unit and scratch the climate control unit. Perform the servicing by spreading a cloth in the position indicated in the figure.

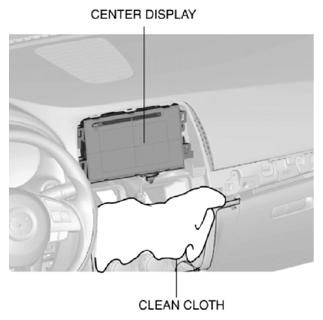

    Fig 2: Identifying Center Display
    G10939472Courtesy of MAZDA MOTORS CORP.
  5. Hold the center display in the position shown in the figure and pull it outward to disengage clips A, B, C, and D from the instrument panel.

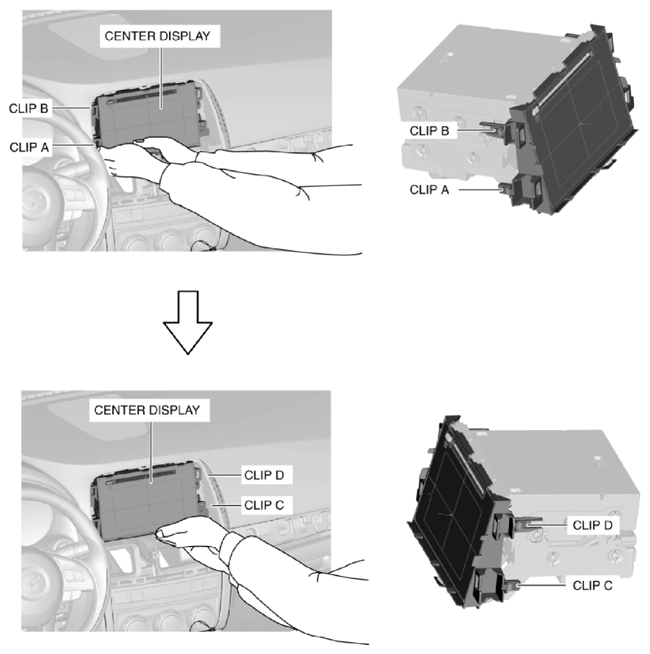

    Fig 3: Holding Center Display
    G10939473Courtesy of MAZDA MOTORS CORP.
  6. Disconnect the connectors.

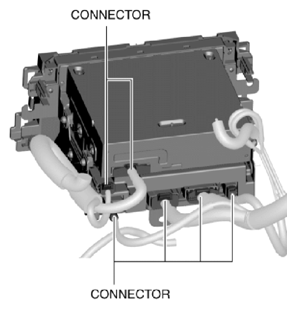

    Fig 4: Disconnecting Connectors
    G10939474Courtesy of MAZDA MOTORS CORP.
  7. Remove the center display component.
  8. Remove the screws.

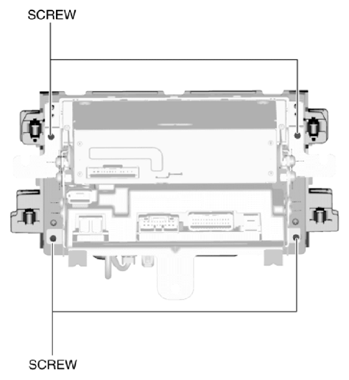

    Fig 5: Removing Screws
    G10939475Courtesy of MAZDA MOTORS CORP.
  9. Cut the bands shown in the figure.

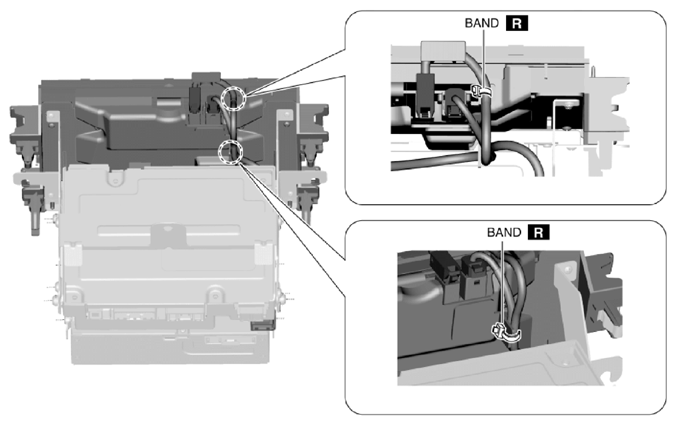

    Fig 6: Identifying Bands Cutting Position
    G10939476Courtesy of MAZDA MOTORS CORP.
  10. Disconnect the connectors.

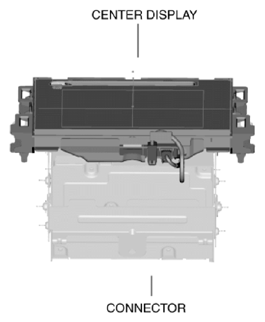

    Fig 7: Disconnecting Connectors
    G10939477Courtesy of MAZDA MOTORS CORP.
  11. Remove the center display.
