Connectivity Master Unit (CMU) Disassembly/Assembly
›
Short-cord Assembly Note
Short-cord Assembly Note
WARNING:
This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
When assembling the short-cord, press it into the groove of the CMU.

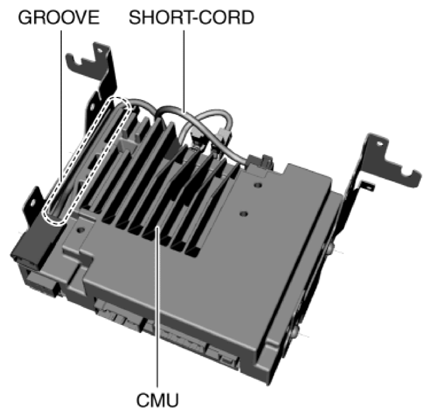

Fig 1: Identifying Short-Cord Assembly
Courtesy of MAZDA MOTORS CORP.
