Without Center Display

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

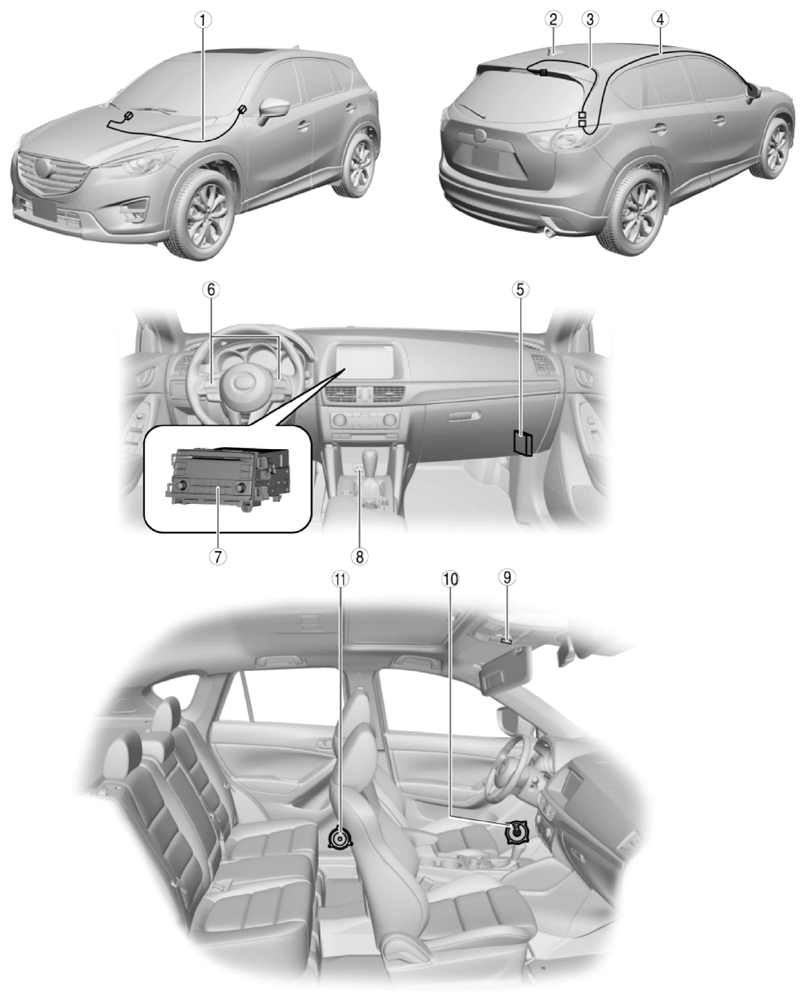

Fig 1: Entertainment Components Location - Without Center Display

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Antenna feeder No. 1 (See ANTENNA FEEDER No. 1 REMOVAL/INSTALLATION .) (See ANTENNA FEEDER No. 1 INSPECTION .)
2	Center roof antenna (See CENTER ROOF ANTENNA REMOVAL/INSTALLATION .) (See CENTER ROOF ANTENNA INSPECTION .)
3	Antenna feeder No. 3 (See ANTENNA FEEDER No. 3 REMOVAL/INSTALLATION .) (See ANTENNA FEEDER No. 3 INSPECTION .)
4	Antenna feeder No. 2 (See ANTENNA FEEDER No. 2 REMOVAL/INSTALLATION .) (See ANTENNA FEEDER No. 2 INSPECTION .)
5	Bluetooth® unit (With Bluetooth* unit) (See Bluetooth® UNIT REMOVAL/INSTALLATION .)
6	Steering switch (See STEERING SWITCH REMOVAL/INSTALLATION .) (See STEERING SWITCH INSPECTION .)
7	Audio unit (See AUDIO UNIT REMOVAL/INSTALLATION .)
8	Auxiliary jack/USB port (See AUXILIARY JACK/USB PORT REMOVAL/INSTALLATION .) (See AUXILIARY JACK/USB PORT INSPECTION .)
9	Microphone (With Bluetooth® unit) (See MICROPHONE REMOVAL/INSTALLATION .)
10	Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .) (See FRONT DOOR SPEAKER INSPECTION .)
11	Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION .) (See REAR DOOR SPEAKER INSPECTION .)
