Snap Pin Installation Note

WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Install the snap pin as shown in the figure.

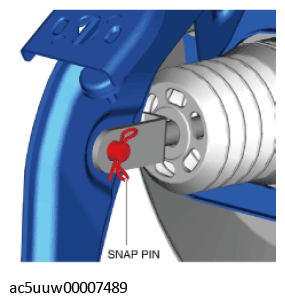

Fig 1: Locating Snap Pin
Courtesy of MAZDA MOTORS CORP.
