Front Brake Caliper Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Replacement Part

Dust seal
Quantity: 1
Location of use: Caliper body

Piston seal
Quantity: 1
Location of use: Piston

Oil and Chemical Type

Brake fluid type
Type: SAE J1703 or FMVSS116 DOT-3

Rubber grease (Pink)
Type: Oil mixed with rubber grease 3611560 and CCI#20

CAUTION:

Brake fluid will damage painted surfaces. Be careful not to spill any on painted surfaces. In addition, if there is any brake fluid on the wiring harness, the wire insulation may corrode causing a malfunction such as a short circuit. If brake fluid gets on a painted surface or wiring harness, wash and flush it off completely with water immediately.

Remove in the order indicated in the table.

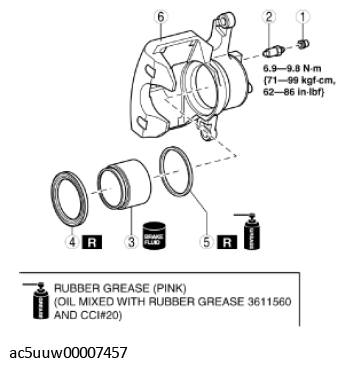

Fig 1: Front Brake Caliper Components With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Bleeder cap
2	Bleeder screw
3	Piston (See Piston Disassembly Note .)
4	Dust seal
5	Piston seal
6	Caliper body

Install in the reverse order of removal.
