Front Brake Caliper Removal/Installation: Notes
WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
Replacement Part
Gasket
Quantity: 2
Location of use: Front brake hose
Oil and Chemical Type
Brake fluid type
Type: SAE J1703 or FMVSS116 DOT-3
CAUTION:
- Brake fluid will damage painted surfaces. Be careful not to spill any on painted surfaces. In addition, if there is any brake fluid on the wiring harness, the wire insulation may corrode causing a malfunction such as a short circuit. If brake fluid gets on a painted surface or wiring harness, wash and flush it off completely with water immediately.
- Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- After installation, add brake fluid, bleed the air, and inspect for fluid leakage. (See BRAKE FLUID AIR BLEEDING .)
- Depress the brake pedal a few times, rotate the wheel by hand, and verify that the brake does not drag.

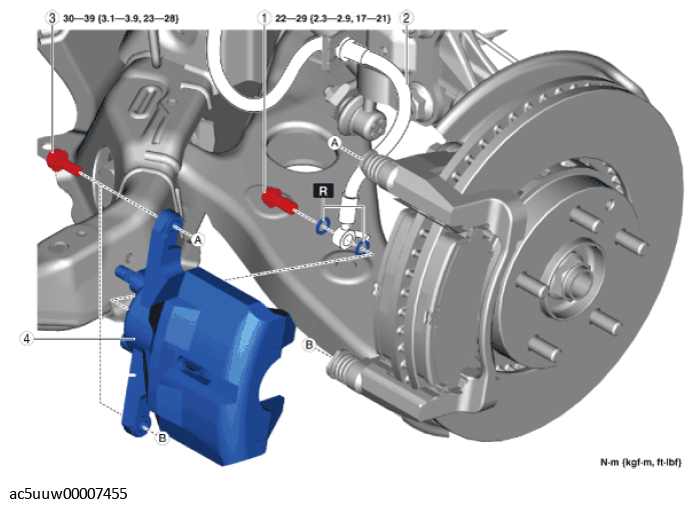

COMPONENT DESCRIPTION
| 1 | Bolt |
| 2 | Brake hose |
| 3 | Bolt |
| 4 | Front brake caliper (See Front Brake Caliper Installation Note .) |
