Without Center Display

WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

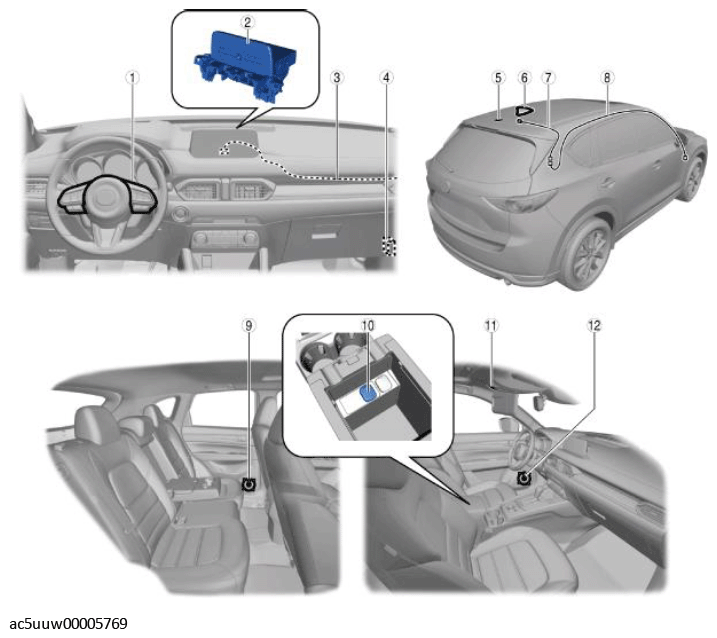

Fig 1: Locating Entertainment Index Without Center Display

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Steering switch (See STEERING SWITCH REMOVAL/INSTALLATION .) (See STEERING SWITCH INSPECTION .)
2	Audio unit (See AUDIO UNIT REMOVAL/INSTALLATION .)
3	Antenna feeder No. 1 (See ANTENNA FEEDER NO. 1 REMOVAL/INSTALLATION .) (See ANTENNA FEEDER NO. 1 INSPECTION .)
4	Bluetooth® unit (See Bluetooth® UNIT REMOVAL/INSTALLATION .) (See Bluetooth® PAIRING PROCEDURE .)
5	Condenser (See CONDENSER REMOVAL/INSTALLATION .)
6	Center roof antenna (See CENTER ROOF ANTENNA REMOVAL/INSTALLATION .) (See CENTER ROOF ANTENNA INSPECTION .)
7	Antenna feeder No. 3 (See ANTENNA FEEDER NO. 3 REMOVAL/INSTALLATION .) (See ANTENNA FEEDER NO. 3 INSPECTION .)
