Lighting Systems Location Index: Exterior

WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

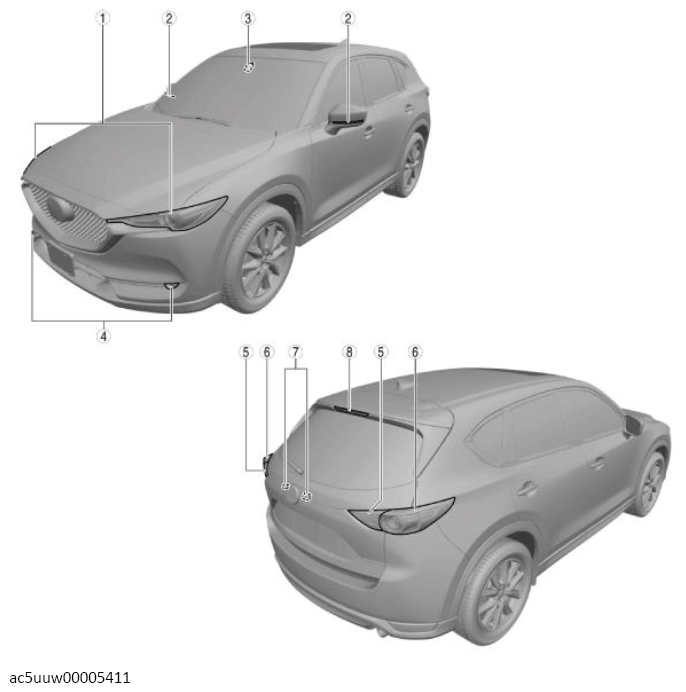

Fig 1: Vehicle Exterior Lights

G11428155

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .) (See FRONT COMBINATION LIGHT DISASSEMBLY/ASSEMBLY .) (See HEADLIGHT BULB REMOVAL/INSTALLATION .) (See HEADLIGHT AIMING .) (See HEADLIGHT LEVELING ACTUATOR INSPECTION .) (See DRL (DAYTIME RUNNING LIGHT) BULB REMOVAL/INSTALLATION .) (See PARKING LIGHT BULB REMOVAL/INSTALLATION .) (See FRONT SIDE MARKER LIGHT BULB REMOVAL/INSTALLATION .) (See FRONT TURN LIGHT BULB REMOVAL/INSTALLATION .) (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE .)
2	Side turn light (See SIDE TURN LIGHT REMOVAL/INSTALLATION .) (See SIDE TURN LIGHT INSPECTION .)
3	Auto light sensor (with auto light system) (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE .) (See AUTO LIGHT SENSOR REMOVAL/INSTALLATION .)
4	Front fog light (with front fog light) (See FRONT FOG LIGHT REMOVAL/INSTALLATION .) (See FRONT FOG LIGHT INSPECTION [LED TYPE] .) (See FRONT FOG LIGHT AIMING .)
5	Liftgate light (See LIFTGATE LIGHT REMOVAL/INSTALLATION .) (See BRAKE LIGHT BULB REMOVAL/INSTALLATION .) (See BACK-UP LIGHT BULB REMOVAL/INSTALLATION .) (See TAILLIGHT BULB REMOVAL/INSTALLATION .)
6	Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION .) (See REAR COMBINATION LIGHT SHORT-CORD REMOVAL/INSTALLATION .) (See REAR COMBINATION LIGHT SHORT-CORD INSPECTION .) (See BRAKE LIGHT BULB REMOVAL/INSTALLATION .) (See REAR TURN LIGHT BULB REMOVAL/INSTALLATION .) (See REAR SIDE MARKER LIGHT BULB REMOVAL/INSTALLATION .) (See TAILLIGHT BULB REMOVAL/INSTALLATION .)
7	License plate light (See LICENSE PLATE LIGHT REMOVAL/INSTALLATION .) (See LICENSE PLATE LIGHT BULB REMOVAL/INSTALLATION .)
8	High-mount brake light (See HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION .)
