Assist Handle Removal/Installation: Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Push the assist handle in the direction of the arrow shown in the figure.

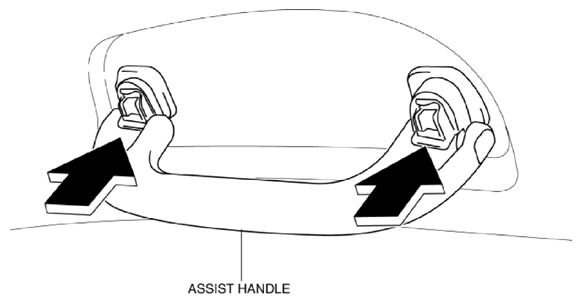

    Fig 1: Pushing Assist Handle
    G10939126Courtesy of MAZDA MOTORS CORP.
  2. Push the assist handle cover assembled to install the assist handle.

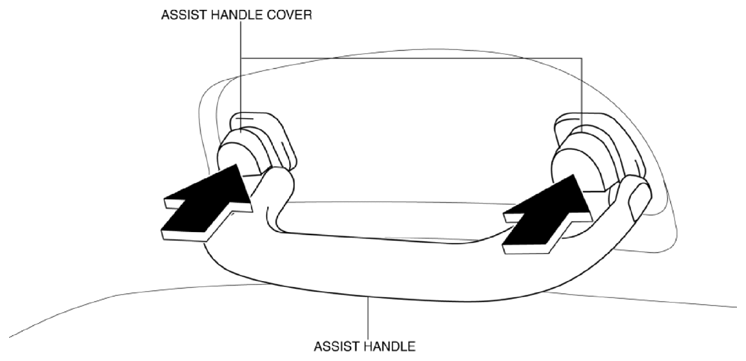

Fig 2: Pushing Assist Handle Cover
G10939127Courtesy of MAZDA MOTORS CORP.
