Floor Covering Removal/Installation: Notes

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Remove the following parts:
1. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
2. Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
3. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
4. B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
5. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
6. Front seat (See FRONT SEAT REMOVAL/INSTALLATION .)
7. Lower anchor of the front seat belt (without lap pre-tensioner seat belt) (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
8. Lap pre-tensioner seat belt (with lap pre-tensioner seat belt) (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
9. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
10. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
11. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R] .)
12. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
13. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
14. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
15. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
16. Electric parking brake (EPB) control module (See ELECTRIC PARKING BRAKE CONTROL MODULE REMOVAL/INSTALLATION .)
17. SAS control module (See SAS CONTROL MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] or SAS CONTROL MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] .)
18. Joint cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
Remove fasteners.

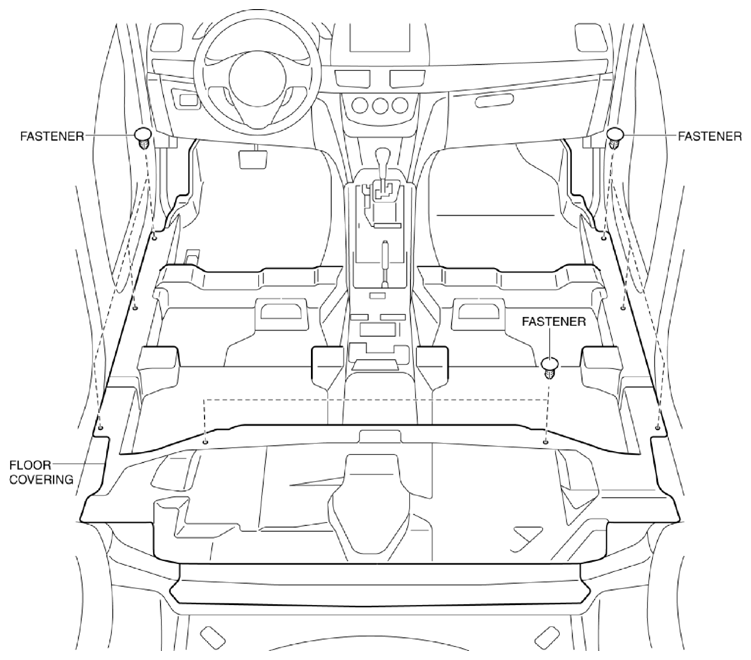

Fig 1: Removing Fasteners
Courtesy of MAZDA MOTORS CORP.
Take the floor covering out from the opened door.
Install in the reverse order of removal. (See FLOOR COVERING INSTALLATION NOTE .)
