Switch Panel Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)

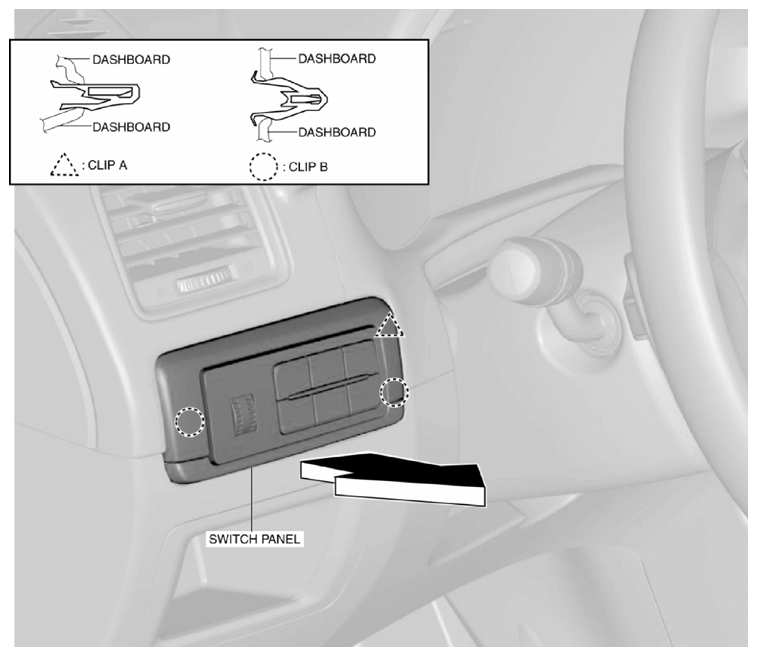

Insert your hand from the lower side of the lower panel, press the switch panel in the direction of the arrow shown in the figure and remove it while detaching clip A and B.

Fig 1: Pressing Switch Panel
Courtesy of MAZDA MOTORS CORP.
Disconnect the cluster switch connector.

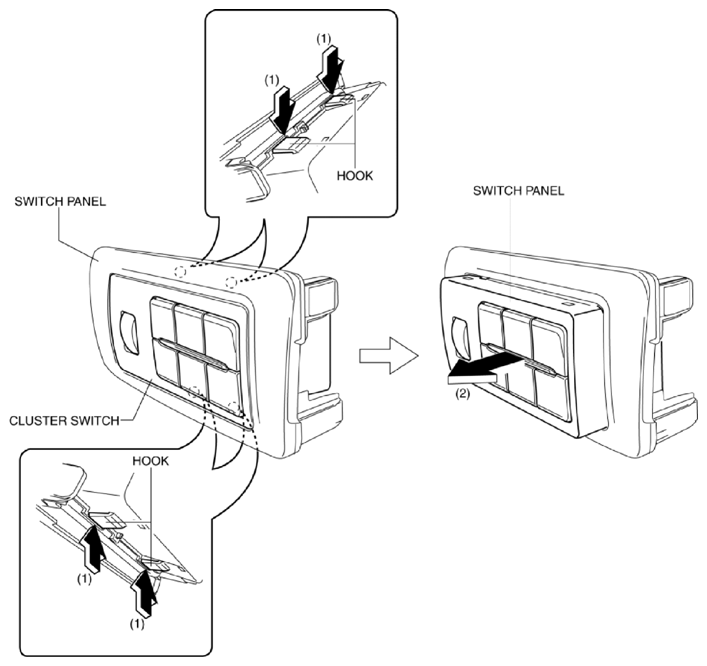

Remove the cluster switch in the direction of the arrow (2) while detaching hooks in the direction of the arrow (1).

Fig 2: Removing Cluster Switch
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
