Trunk Covering Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Remove fasteners.

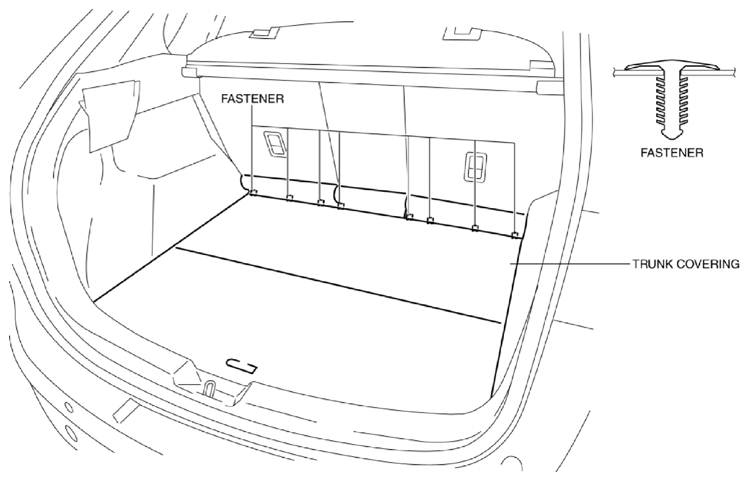

Fig 1: Removing Fasteners
Courtesy of MAZDA MOTORS CORP.
Remove the trunk covering.
Install in the reverse order of removal.
