Front Lower Arm Ball Joint Installation Note
WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

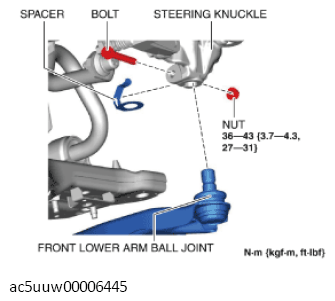

- Install the spacer to the steering knuckle before installing the front lower arm ball joint.
Courtesy of MAZDA
- Insert the bolt from the front of the vehicle and tighten the nut to the specified torque.
