Front Lower Arm Bushing Removal Note

WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front lower arm bushing using the SSTs and the press.

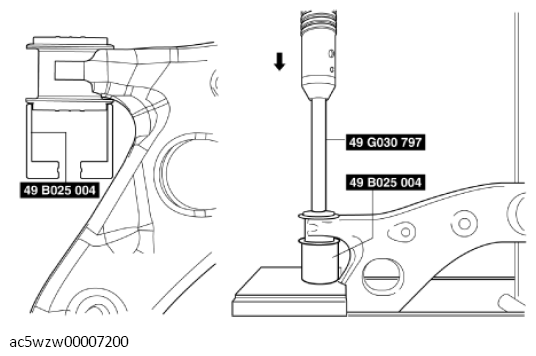

Fig 1: Removing Front Lower Arm Bushing Using SST And Press
Courtesy of MAZDA
Wipe off any dirt of oil on the front lower arm bushing installation area.
