Seats Location Index

WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

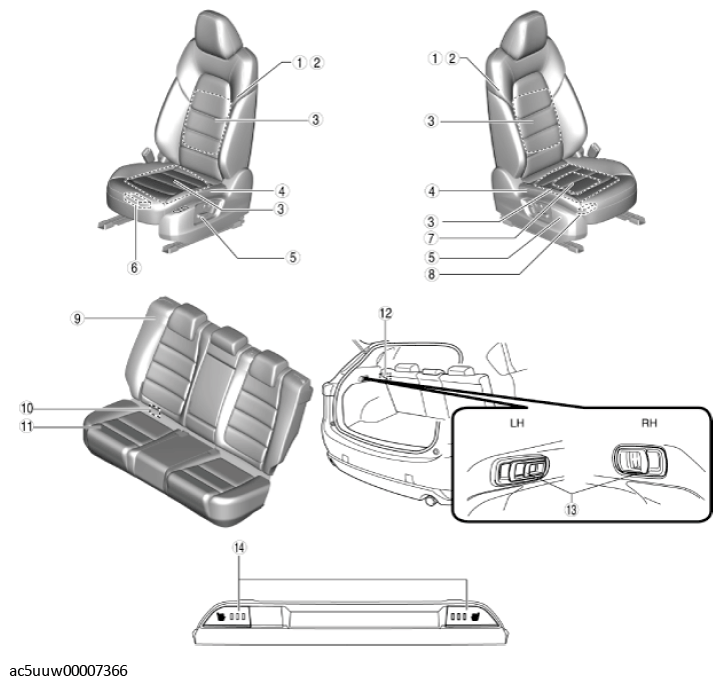

Fig 1: Seats Index Location

G11426513

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Front seat (See FRONT SEAT REMOVAL/INSTALLATION .) (See TILT MOTOR INSPECTION .) (See SLIDE MOTOR INSPECTION .) (See LIFT MOTOR INSPECTION .) (See RECLINER MOTOR INSPECTION .)
2	Front seat back (See FRONT SEAT BACK TRIM REMOVAL/INSTALLATION .) (See LUMBAR SUPPORT MOTOR INSPECTION .)
3	Front seat warmer unit (See FRONT SEAT WARMER UNIT INSPECTION .)
4	Front seat cushion (See FRONT SEAT CUSHION TRIM REMOVAL/INSTALLATION .) (See FRONT SEAT WARMER UNIT INSPECTION .)
5	Front seat side cover (See FRONT SEAT SIDE COVER REMOVAL/INSTALLATION .) (See POWER SEAT SWITCH REMOVAL/INSTALLATION .) (See POWER SEAT SWITCH INSPECTION .) (See POSITION MEMORY SWITCH REMOVAL/INSTALLATION .) (See POSITION MEMORY SWITCH INSPECTION .)
6	Position memory control module (See POSITION MEMORY CONTROL MODULE REMOVAL/INSTALLATION .) (See POSITION MEMORY CONTROL MODULE INSPECTION .)
7	Occupancy sensor (See OCCUPANCY SENSOR INSPECTION .)
8	Front seat warmer control unit (See FRONT SEAT WARMER CONTROL UNIT REMOVAL/INSTALLATION .) (See FRONT SEAT WARMER CONTROL UNIT INSPECTION .)
9	Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION .) (See REAR SEAT BACK FRAME REMOVAL/INSTALLATION .) (See REAR SEAT BACK TRIM REMOVAL/INSTALLATION .) (See REAR SEAT WARMER UNIT INSPECTION .) REAR SEAT WARMER SWITCH REMOVAL/INSTALLATION.)) (See REAR SEAT WARMER SWITCH INSPECTION .)
10	Rear seat warmer control unit (See REAR SEAT WARMER CONTROL UNIT REMOVAL/INSTALLATION .) (See REAR SEAT WARMER CONTROL UNIT INSPECTION .)
11	Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .) (See REAR SEAT CUSHION TRIM REMOVAL/INSTALLATION .) (See REAR SEAT WARMER UNIT INSPECTION .)
12	Rear seat back striker (See REAR SEAT BACK STRIKER REMOVAL/INSTALLATION .)
13	Remote handle lever (See REMOTE HANDLE LEVER REMOVAL/INSTALLATION .)
14	Front seat warmerswitch (See FRONT SEAT WARMER SWITCH REMOVAL/INSTALLATION .)
