Deflector Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Fully open the glass panel.
Move a tape-wrapped flathead screwdriver in the direction of arrow (1) shown in the figure, move the springs in the direction of arrow (2) with the hooks spread, and remove the springs from the hooks.
CAUTION:
- Carefully remove the spring so as not to damage the hook. If the spring is removed forcefully, the hook located at the spring installation area may be damaged.

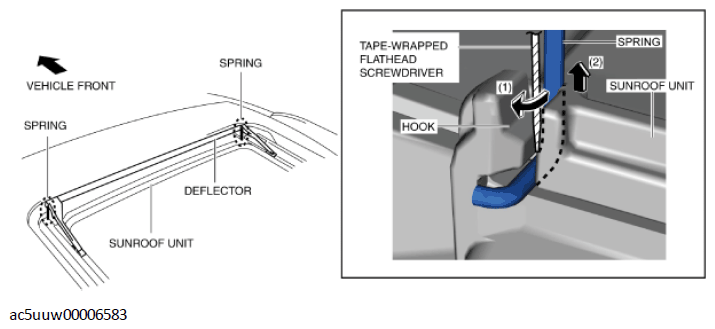

Fig 1: Removing Springs From Hooks Using Flathead Screwdriver
Courtesy of MAZDA MOTORS CORP.
Remove the deflector while lifting it up in the direction of arrow (1) shown in the figure and moving it in the direction of arrow (2).

Fig 2: Removing Deflector
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
