Weatherstrip Installation Note

WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Install the weatherstrip to the glass panel with the joint part of the weatherst rip assembled to the vehicle rear side.

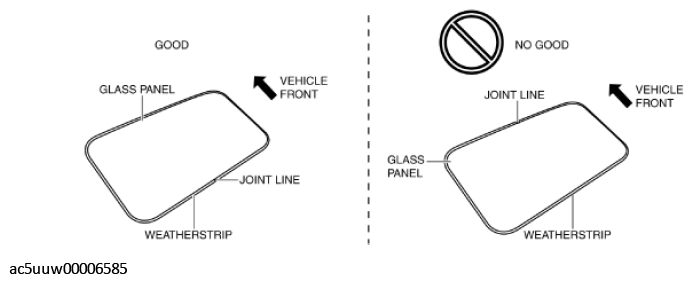

Fig 1: Caution For Installing Weatherstrip To Glass Panel

Courtesy of MAZDA MOTORS CORP.
