Front Guide Disassembly Note
WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

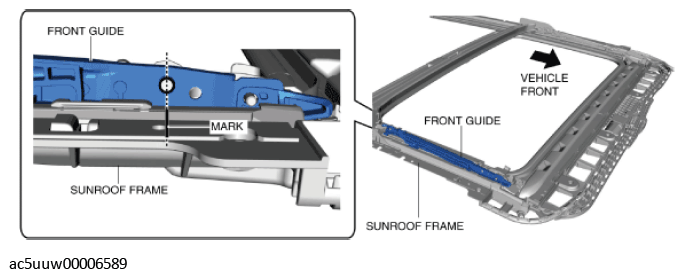

- Mark the position shown in the figure for correct positioning.CAUTION:
- If the front guide is assembled to a wrong position, the glass panel may stop at the wrong position and the part may be damaged. Before removing the front guide, mark the position shown in the figure for correct positioning.
