Troubleshooting Procedure: Notes

WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

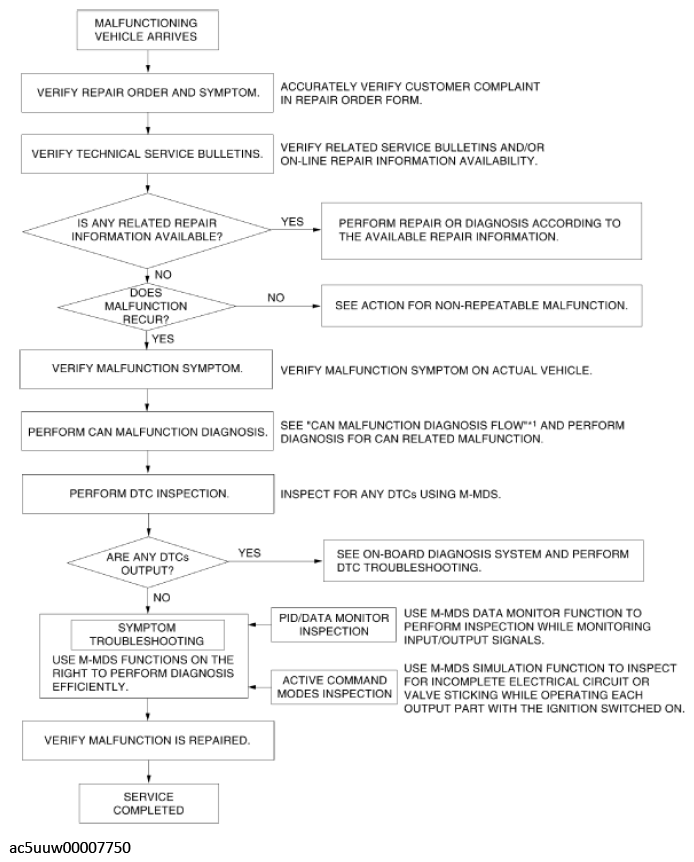

Fig 1: Position Memory Control Module Troubleshooting Procedure Flowchart

*1: (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW .)
