Evaporative Hose Installation Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Install the evaporative hose as shown in the figure.

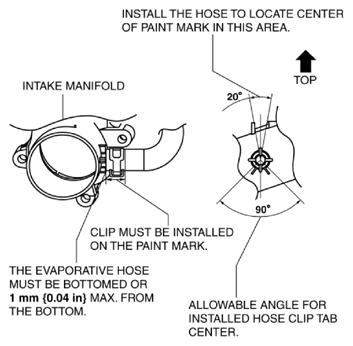

Fig 1: Identifying Evaporative Hose Installation Angle

Courtesy of MAZDA MOTORS CORP.
