Section 180 (On-Board Diagnostic - Power Liftgate Control Module)
›
On-Board Diagnostic Wiring Diagram [Power Liftgate (PLG) Control Module]
On-Board Diagnostic Wiring Diagram [Power Liftgate (PLG) Control Module]
WARNING:
This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

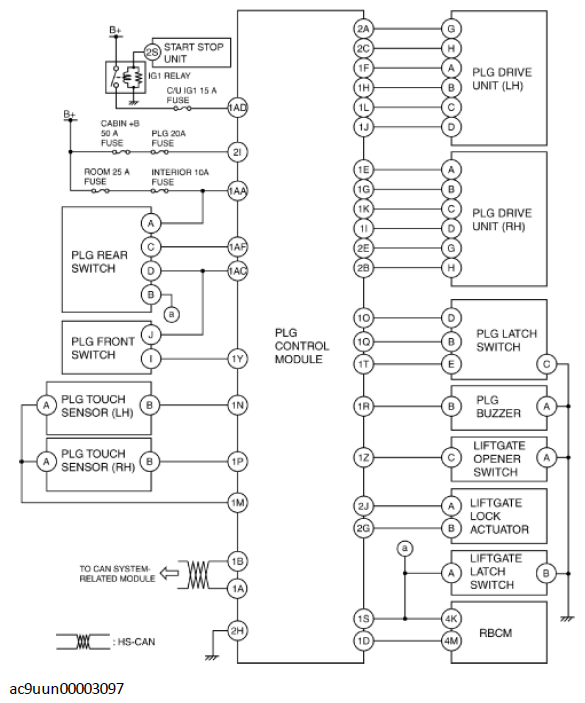

Fig 1: PLG Control Module On-Board Diagnostic Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
