Front Outer Handle Removal/Installation: Notes

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Perform the front door glass preparation. (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
  2. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  3. Remove the following parts:
    1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
    2. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
    3. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
    4. Front door module panel (See FRONT DOOR MODULE PANEL REMOVAL/INSTALLATION .)
    5. Front door key cylinder (See FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION .)
  4. Disconnect the keyless antenna connector (With advanced keyless entry system).

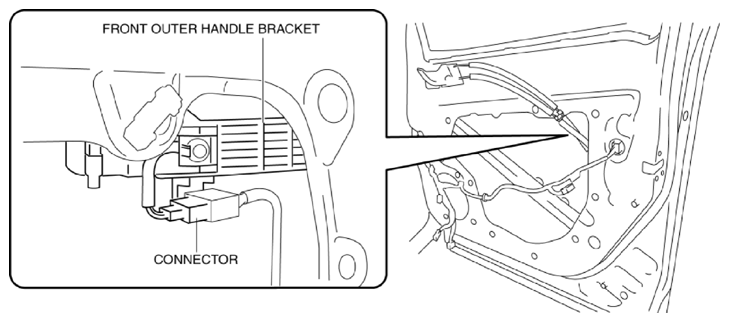

    Fig 1: Identifying Front Outer Handle Bracket And Connector
    G10938746Courtesy of MAZDA MOTORS CORP.
  5. While pulling the front outer handle bracket pin in the direction of arrow (1) shown in the figure, pull the front outer handle in the direction of arrow (2) to detach the front outer handle bracket pin and the front outer handle.

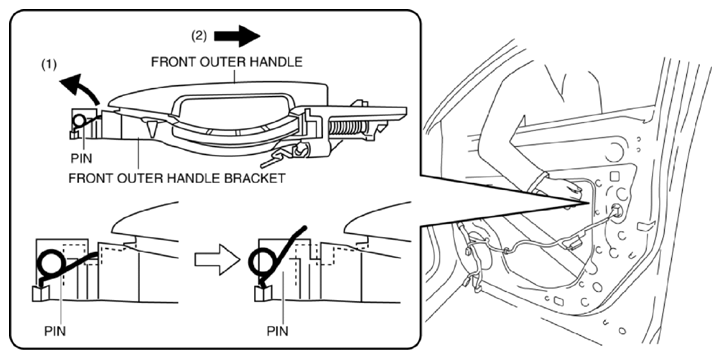

    Fig 2: Pulling Out Front Outer Handle Bracket Pin
    G10938747Courtesy of MAZDA MOTORS CORP.
  6. Remove the front outer handle in the direction of the arrow shown in the figure.

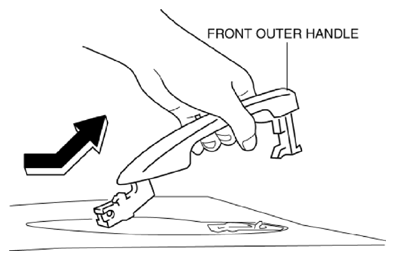

    Fig 3: Removing Front Outer Handle
    G10938748Courtesy of MAZDA MOTORS CORP.
  7. Loosen the screw securing the front outer handle bracket.

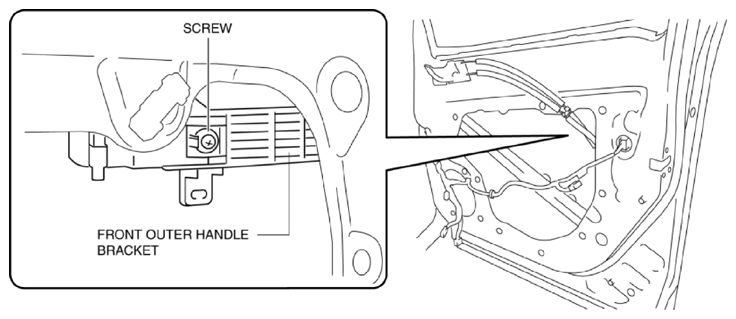

    Fig 4: Identifying Front Outer Handle Bracket Screw
    G10938749Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • The screw cannot be removed because the front outer handle bracket has a stopper which prevents the screw from falling.
  8. Pull the front outer handle bracket in the direction of arrow (1) shown in the figure and detach the front outer handle bracket hooks from the body.

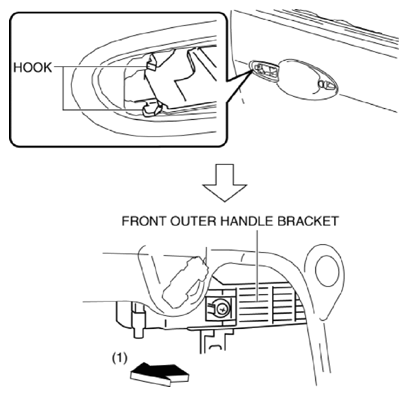

    Fig 5: Pulling Out Front Outer Handle Bracket
    G10938750Courtesy of MAZDA MOTORS CORP.
  9. Lift the front outer handle bracket in the direction of arrow (2) shown in the figure to pull the rod out of the rod holder. (See Front Outer Handle Bracket Installation Note .)

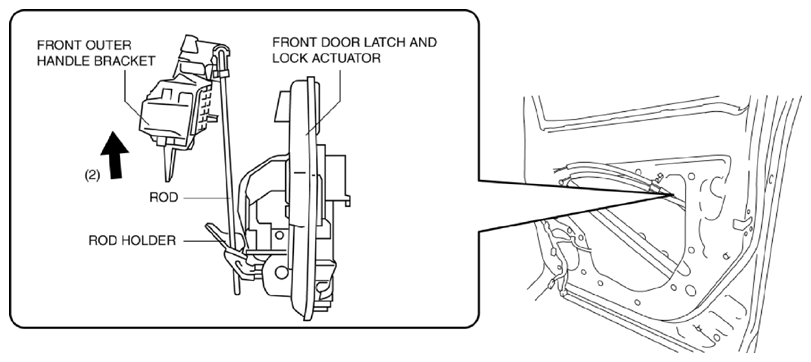

    Fig 6: Lifting Front Outer Handle Bracket
    G10938751Courtesy of MAZDA MOTORS CORP.
  10. Remove the front outer handle bracket.
  11. Remove the handle seat from the body.
    Fig 7: Removing Handle Seat From Body
    G10938752Courtesy of MAZDA MOTORS CORP.
  12. Install in the reverse order of removal.
