Front Inner Handle

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION .)
  3. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
  4. Disconnect the door lock knob cable and the inner handle cable from the front inner handle.

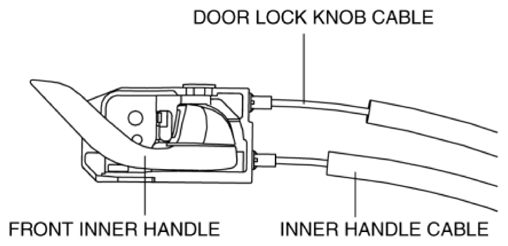

    Fig 1: Identifying Door Lock Knob And Front Inner Handle Cables
    G10938765Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
