Keyless Beeper Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the wiper blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
  3. Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION .)
  4. Disconnect the connector.

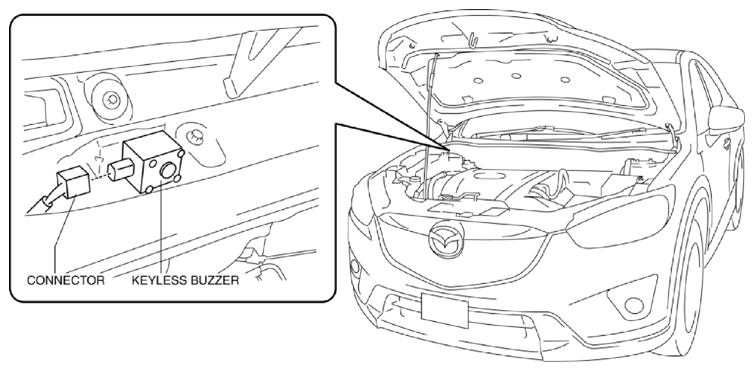

    Fig 1: Identifying Keyless Buzzer Connector
    G10938872Courtesy of MAZDA MOTORS CORP.
  5. Pull the keyless buzzer in the direction of the arrow (2) shown in the figure while pressing the keyless buzzer tab in the direction of the arrow (1) shown in the figure, detach the keyless buzzer tab and bracket, and then remove the keyless buzzer from the bracket.
    Fig 2: Pulling Keyless Buzzer
    G10938873Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
