Liftgate Lock Striker Removal/Installation: Notes

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Remove the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION .)
Remove the bolts, then remove the liftgate lock striker.

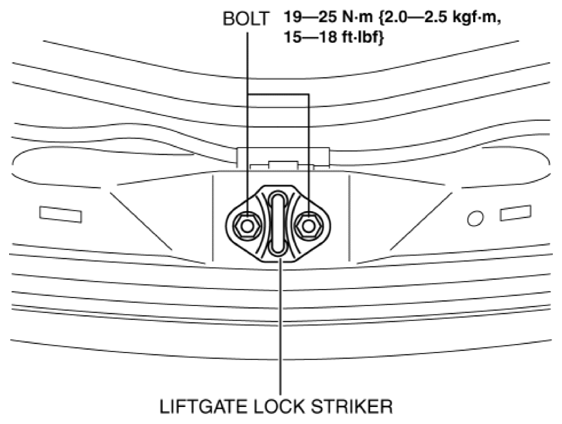

Fig 1: Identifying Liftgate Lock Striker Bolt With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
Adjust the liftgate. (See LIFTGATE ADJUSTMENT .)
