Request Switch Inspection: Liftgate
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
- Remove the following parts:
- Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
- Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
- Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION .)
- Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
- Liftgate garnish (See LIFTGATE GARNISH REMOVAL/INSTALLATION .)
- Request switch (liftgate) (See REQUEST SWITCH REMOVAL/INSTALLATION .)

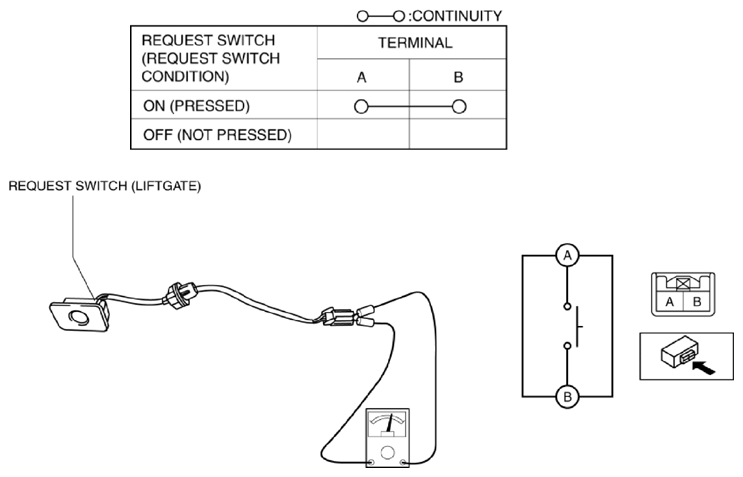

- Verify that the continuity is as indicated in the chart.
- If not as indicated in the chart, replace the request switch.
