Setting Method By Operation Of Remote Transmitter Button
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
- The following setting can be changed by operation of the remote transmitter button.
| M-MDS display | Function | Initial setting | Setting contents | Control unit |
|---|---|---|---|---|
| Lock Beep Volume. | The keyless beeper volume can be adjusted. | Medium | Off/Low/Medium/High | Start stop unit |

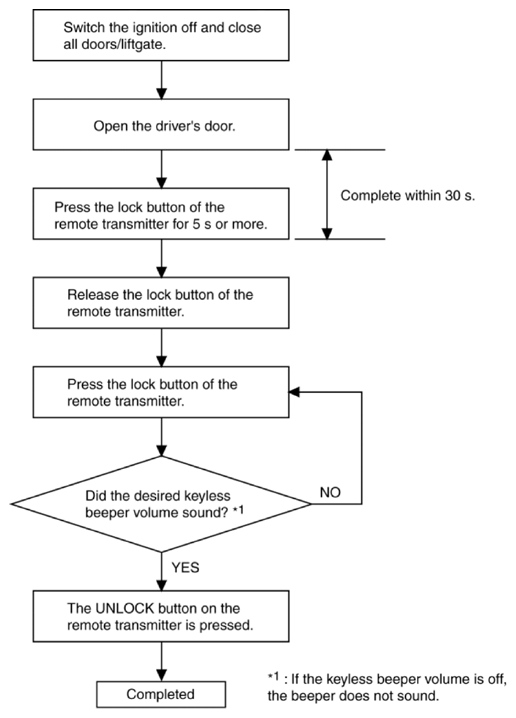

- Change the setting for the keyless beeper volume referring to the following procedure:
NOTE:
- If any of the following conditions is met during procedure, the setting for changing the keyless beeper volume is finished.
- The ignition is switched to ACC or ON (engine off or on).
- The driver's door is closed.
- The liftgate is open.
- The remote transmitter operation is not performed for approx. 10 s.
- The UNLOCK button on the remote transmitter is pressed.
- A request switch is pressed.
