Lighting Systems Location Index: Exterior

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

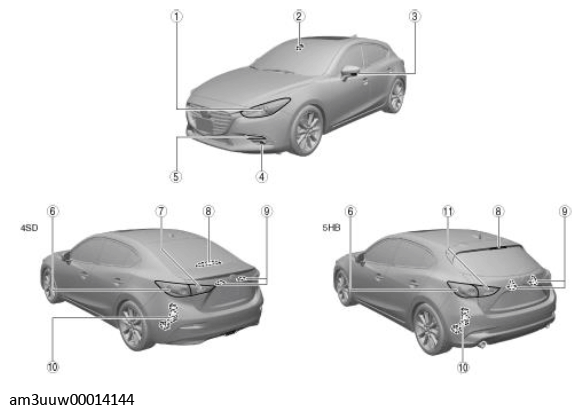

Fig 1: Exterior Lighting System Component Location

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .) (See FRONT COMBINATION LIGHT DISASSEMBLY/ASSEMBLY .) (See HEADLIGHT BULB REMOVAL/INSTALLATION .) (See HEADLIGHT AIMING .) (See DRL (DAYTIME RUNNING LIGHT) BULB REMOVAL/INSTALLATION .) (See PARKING LIGHT BULB REMOVAL/INSTALLATION .) (See FRONT SIDE MARKER LIGHT BULB REMOVAL/INSTALLATION .) (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE .)
2	Auto light sensor (with auto light system) (See AUTO LIGHT SENSOR REMOVAL/INSTALLATION .) (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE .)
3	Side turn light (with side turn light) (See SIDE TURN LIGHT REMOVAL/INSTALLATION .) (See SIDE TURN LIGHT INSPECTION .) (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE .)
4	Front fog light (with front fog light) (See FRONT FOG LIGHT REMOVAL/INSTALLATION .) (See FRONT FOG LIGHT INSPECTION [LED TYPE] .) (See FRONT FOG LIGHT AIMING .)
5	Front turn light (See FRONT TURN LIGHT REMOVAL/INSTALLATION .) (See FRONT TURN LIGHT BULB REMOVAL/INSTALLATION .) (See FRONT TURN LIGHT SHORT CORD REMOVAL/INSTALLATION .) (See FRONT TURN LIGHT SHORT CORD INSPECTION .) (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE .)
6	Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION .) (See REAR TURN LIGHT BULB REMOVAL/INSTALLATION .) (See BRAKE LIGHT/TAILLIGHT/REAR SIDE MARKER LIGHT BULB REMOVAL/INSTALLATION .) (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE .)
7	Trunk lid light (Sedan (4SD)) (See BACK-UP LIGHT BULB REMOVAL/INSTALLATION .) (See TRUNK LID LIGHT REMOVAL/INSTALLATION .)
8	High-mount brake light (See HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION .)
9	License plate light (See LICENSE PLATE LIGHT REMOVAL/INSTALLATION .) (See LICENSE PLATE LIGHT BULB REMOVAL/INSTALLATION .)
10	Auto leveling sensor (with headlight auto leveling system) (See AUTO LEVELING SENSOR INSPECTION .) (See AUTO LEVELING SENSOR REMOVAL/INSTALLATION .) (See HEADLIGHT AUTO LEVELING SYSTEM INITIALIZATION .)
11	Liftgate light (Hatchback (5HB)) (See BACK-UP LIGHT BULB REMOVAL/INSTALLATION .) (See LIFTGATE LIGHT REMOVAL/INSTALLATION .)
