Vehicle Front Side
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

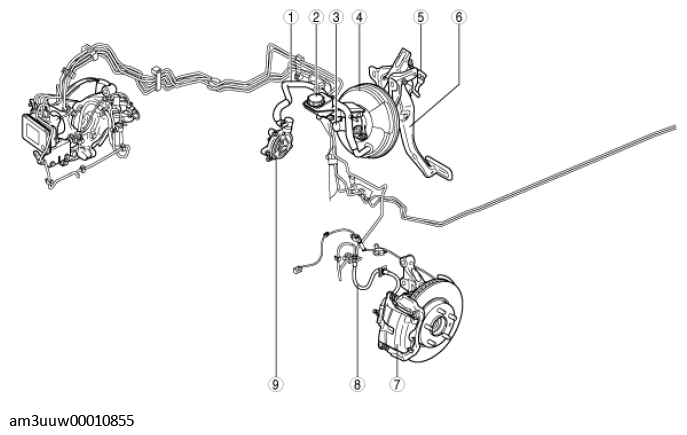

COMPONENT DESCRIPTION
| 1 | Vacuum line (See VACUUM LINE INSPECTION .) (See VACUUM HOSE REMOVAL/INSTALLATION .) |
| 2 | Brake fluid (See BRAKE FLUID INSPECTION .) (See BRAKE FLUID AIR BLEEDING .) |
| 3 | Master cylinder (See MASTER CYLINDER REMOVAL/INSTALLATION .) (See BRAKE FLUID LEVEL SENSOR INSPECTION .) |
| 4 | Power brake unit (See POWER BRAKE UNIT INSPECTION .) (See POWER BRAKE UNIT REMOVAL/INSTALLATION .) |
| 5 | Brake switch (See BRAKE SWITCH INSPECTION .) |
| 6 | Brake pedal (See BRAKE PEDAL INSPECTION .) (See BRAKE PEDAL REMOVAL/INSTALLATION .) |
| 7 | Front brake (disc) (See FRONT BRAKE (DISC) INSPECTION .) (See FRONT BRAKE (DISC) REMOVAL/INSTALLATION .) (See DISC PAD (FRONT) REPLACEMENT .) (See CALIPER (FRONT) DISASSEMBLY/ASSEMBLY .) |
| 8 | Front brake hose (See BRAKE HOSE (FRONT) REMOVAL/INSTALLATION .) |
| 9 | Vacuum pump (See VACUUM PUMP INSPECTION .) (See VACUUM PUMP REMOVAL/INSTALLATION .) |
