Assist Handle Removal/Installation: Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

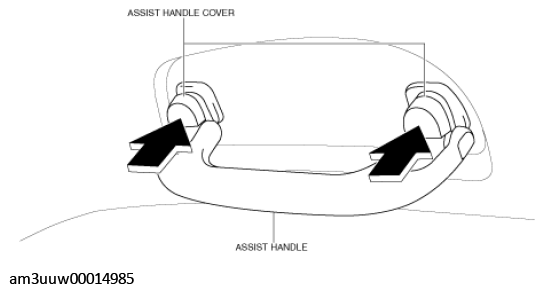

Push the assist handle in the direction of the arrows shown in the figure.

Fig 1: Pushing Assist Handle
Courtesy of MAZDA MOTORS CORP.
Push the assist handle cover assembled to install the assist handle.

Fig 2: Installing Assist Handle Cover

Courtesy of MAZDA MOTORS CORP.
