Liftgate Recess Removal/Installation
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

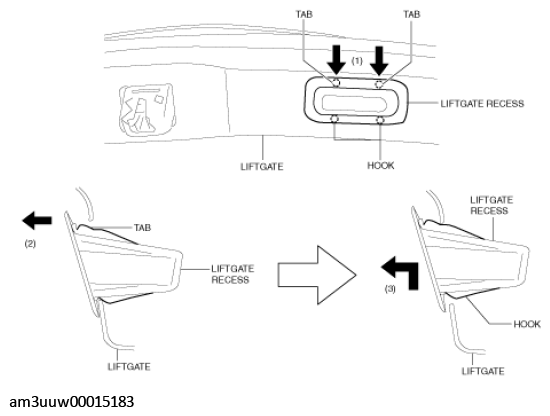

- While pressing the liftgate recess in the direction of the arrows (1) shown in the figure, move the liftgate recess in the direction of the arrow (2) to detach the liftgate recess tabs from the liftgate.
- Remove the liftgate recess in the direction of the arrow (3) shown in the figure while detaching the hooks of the liftgate recess.
- Install in the reverse order of removal.
