VIN: 3MZ: Installation
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Install the upper outer mirror garnish to the lower outer mirror garnish.

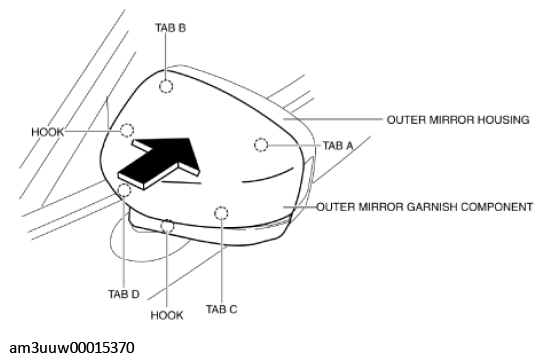

- Press the outer mirror garnish component in the direction of the arrow shown in the figure and install it.
- Install the outer mirror glass. (See OUTER MIRROR GLASS INSTALLATION .)
- Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
