Power Window SUBSWITCH Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the cover in the direction of the arrow shown in the figure.

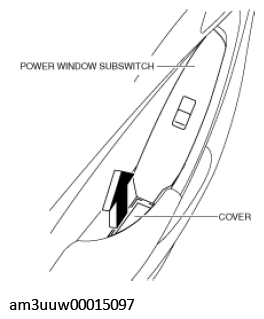

    Fig 1: Removing Power Window Subswitch Cover
    G11449052Courtesy of MAZDA MOTORS CORP.
  3. Insert a remover tool shown in the figure and remove the tab A in the direction of the arrow (1).

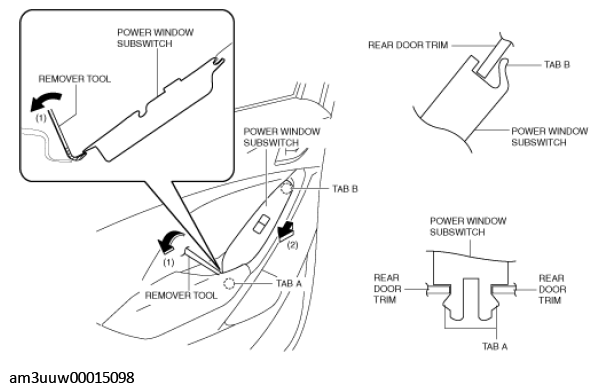

    Fig 2: Removing Power Window Subswitch Tab A
    G11449053Courtesy of MAZDA MOTORS CORP.
  4. Slide the power window subswitch in the direction of the arrow (2) shown in the figure and remove the tab B.
  5. Disconnect the power window subswitch connector.
  6. Pull the edge of power window subswitch cover in the direction of the arrows (1) and detach the tabs.

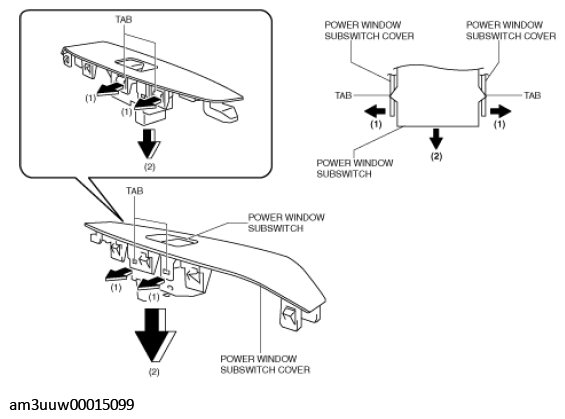

    Fig 3: Pull Edge Of Power Window Subswitch Cover And Detaching Tabs
    G11449054Courtesy of MAZDA MOTORS CORP.
  7. Remove the power window subswitch in the direction of arrow (2) shown in the figure.
  8. Install in the reverse order of removal.
