Windshield Wiper Motor And Link Removal/Installation: Notes

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
  3. Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION .)
    CAUTION:
    • Always affix protective tape to the windshield end. If the windshield wiper motor and link contacts the windshield, it could damage the windshield.

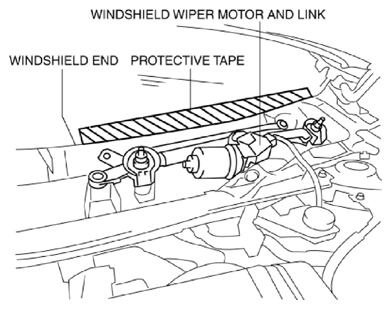

  4. Affix protective tape to the area where the windshield end interferes with the windshield motor and link as shown in the figure.
    Fig 1: Affixing Protective Tape To Windshield End Interferes With Windshield Motor And Link
    G10939373Courtesy of MAZDA MOTORS CORP.

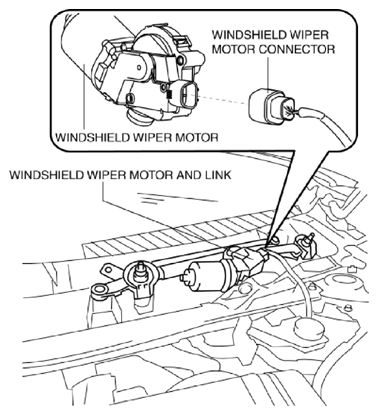

  5. Disconnect the windshield wiper motor connector.
    Fig 2: Disconnecting Windshield Wiper Motor Connector
    G10939374Courtesy of MAZDA MOTORS CORP.

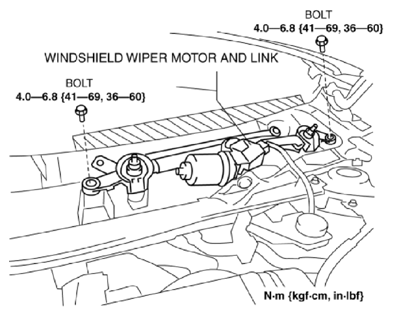

  6. Remove bolts.
    Fig 3: Removing Bolts
    G10939375Courtesy of MAZDA MOTORS CORP.

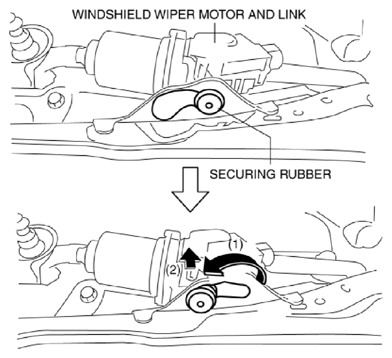

  7. Move the windshield wiper motor and link in the order of the arrows (1) and (2) to remove the securing rubber from the vehicle.
    Fig 4: Moving Windshield Wiper Motor And Link
    G10939376Courtesy of MAZDA MOTORS CORP.

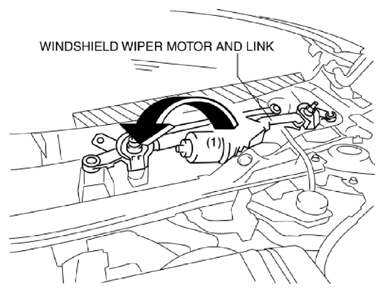

  8. Remove the windshield wiper motor and link from the vehicle in the direction of the arrow (1) while being careful not to allow the windshield wiper end to interfere with the windshield wiper motor and link.
    Fig 5: Removing Windshield Wiper Motor And Link From Vehicle
    G10939377Courtesy of MAZDA MOTORS CORP.

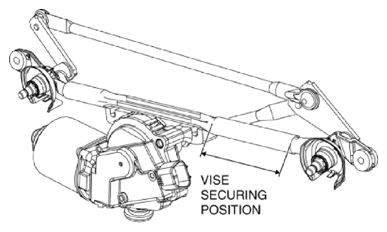

  9. Fix the position of the windshield wiper link shown in the figure with a vise.
    Fig 6: Identifying Windshield Wiper Link Position
    G10939378Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • If the vise is tightened with excessive force, it could deform or damage the windshield wiper link. When securing the windshield wiper link in the vise, be careful not to deform or damage the windshield wiper link.
    • Protect the windshield wiper link by placing a rag in the vise when securing it in the vise. Otherwise, it could damage the vise securing position.

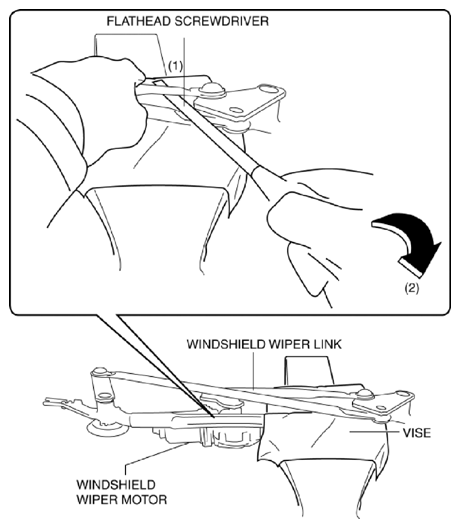

  10. Insert a tape-wrapped flathead screwdriver into the (1) position, move the flathead screwdriver in the direction of the arrow (2), and remove the windshield wiper motor and ball joint for the windshield wiper link.
    Fig 7: Removing Windshield Wiper Motor And Windshield Wiper Link Ball Joint
    G10939379Courtesy of MAZDA MOTORS CORP.

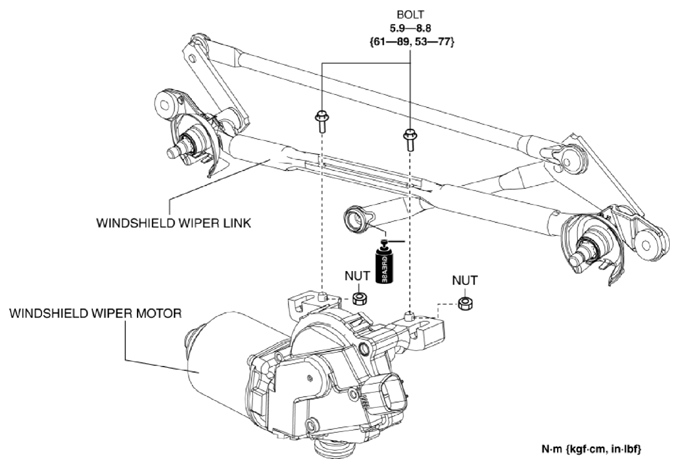

  11. Remove bolts securing the windshield wiper motor and windshield wiper link, and remove nuts from windshield wiper motor.
    Fig 8: Removing Nuts From Windshield Wiper Motor
    G10939380Courtesy of MAZDA MOTORS CORP.
  12. Remove the windshield wiper motor from the windshield wiper link.
  13. Install in the reverse order of removal. (See BALL JOINT ASSEMBLY NOTE .)
