Cargo Compartment Light Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
To prevent scratches or damage, affix protective tape to the position shown in the figure.
CAUTION:
- If a flathead screwdriver is inserted into the gap between the cargo compartment light and liftgate lower trim, the liftgate lower trim could interfere with the flathead screwdriver and be damaged. When removing the cargo compartment light from the liftgate lower trim, perform the procedure after affixing protective tape to the liftgate lower trim.

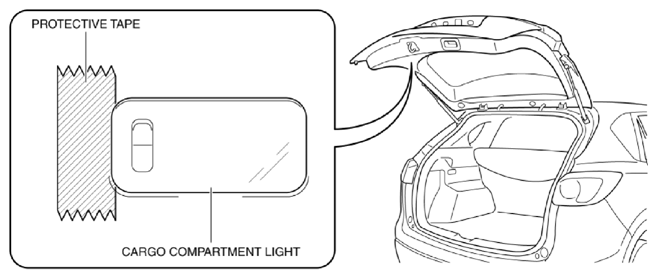

Fig 1: Affixing Protective Tape To Liftgate Lower Trim
Courtesy of MAZDA MOTORS CORP.
Insert a tape-wrapped flathead screwdriver into the gap between the cargo compartment light and liftgate lower trim shown in the figure.

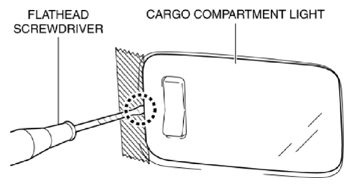

Fig 2: Inserting Tape-Wrapped Flathead Screwdriver Between Cargo Compartment Light And Liftgate Lower Trim
Courtesy of MAZDA MOTORS CORP.
Move the flathead screwdriver in the direction of the arrow (1) shown in the figure to pull out the cargo compartment light tab A from the liftgate lower trim.

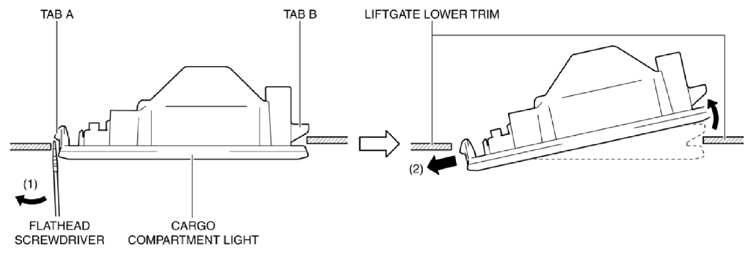

Fig 3: Pulling Out Cargo Compartment Light Tab From Liftgate Lower Trim
Courtesy of MAZDA MOTORS CORP.
Pull out the cargo compartment light in the direction of the arrow (2) shown in the figure to detach the cargo compartment light tab B from the liftgate lower trim.
Remove the cargo compartment light.

Fig 4: Removing Cargo Compartment Light
Courtesy of MAZDA MOTORS CORP.
Disconnect the connector.
Install in the reverse order of removal.
