DRL System (Except Canada Specs.)
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
| Function | Initial setting | Setting contents | Control unit |
|---|---|---|---|
| The DRL system Function can be set. | ON (DRL illumination) | OFF (DRL non-illumination)/ON (DRL illumination) | Front body control module (FBCM) |
- There are two methods for personalizing the DRL system: One using the center display (with center display) and the other using the light switch. Refer to the following and perform the setting.
Using center display
- CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE
Using light switch

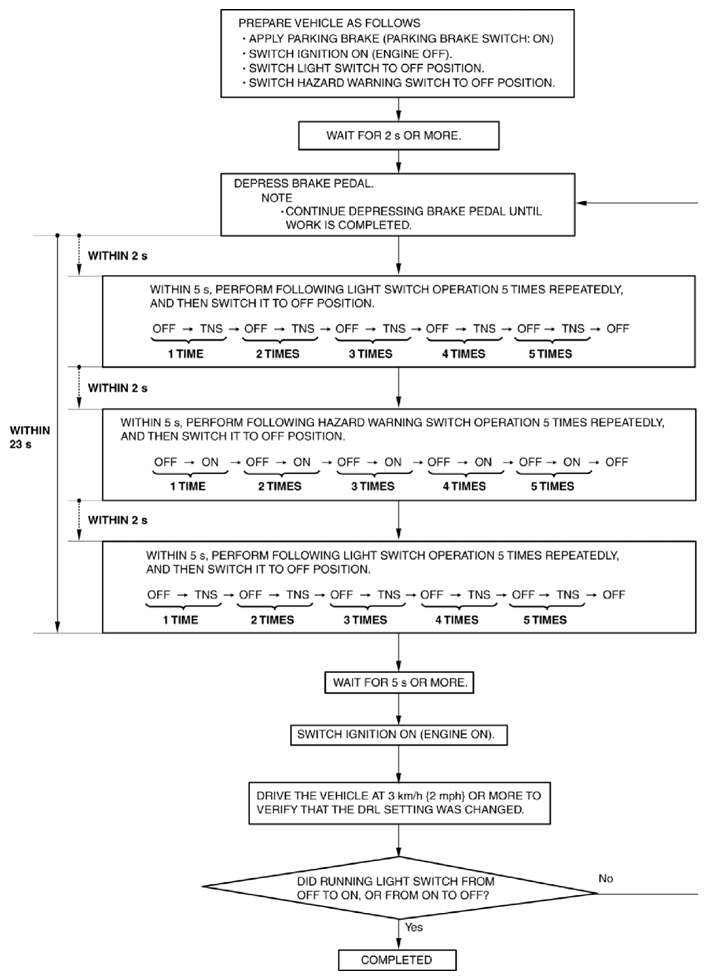

- Perform the following procedure to change the DRL illumination/non-illumination setting.
NOTE:
- Because each procedure needs to be completed within a predetermined period of time, refer to the following procedure before performing the set up work, and then verify the content of the work and the time limit.
