Deflector Removal/Installation
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
- Fully open the glass panel.

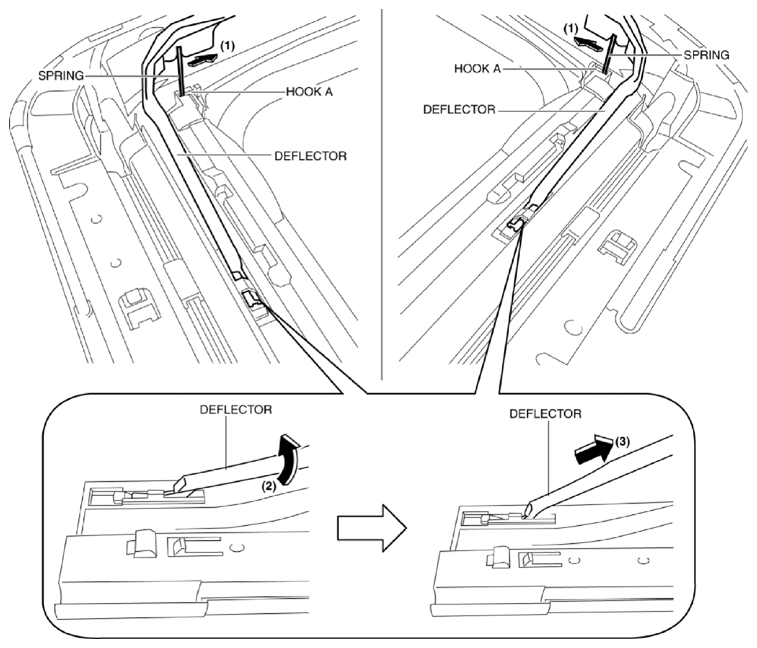

- Remove the spring in the direction of the arrow (1) shown in the figure from hooks A.CAUTION:
- If the spring is removed forcefully, hooks A located at the spring installation area may be damaged. Carefully remove the spring so as not to damage hooks A.
- Remove the deflector in the direction of the arrow in the order of (2), (3) shown in the figure.
- Install in the reverse order of removal.
