Glass Panel Removal/Installation: Notes

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Fully open the sunshade.
Fully close the glass panel.
Remove screws.

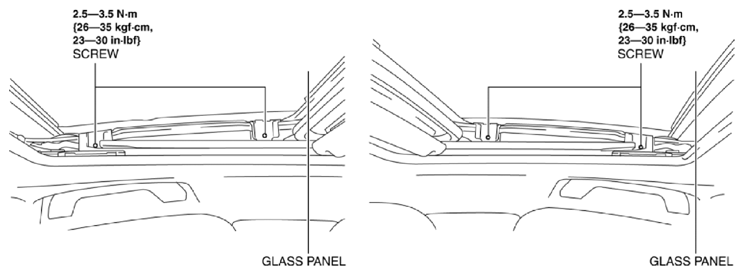

Fig 1: Identifying Glass Panel Screw With Torque Specifications
Courtesy of MAZDA MOTORS CORP.

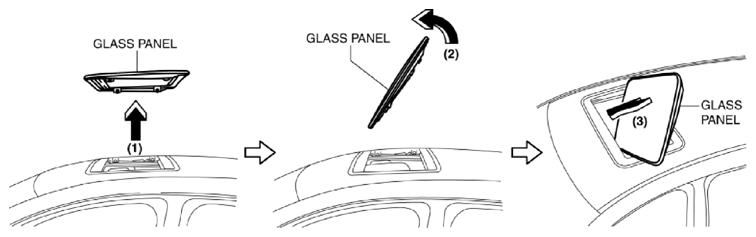

Remove the glass panel in the direction of the arrow in the order of (1), (2), (3) shown in the figure.

Fig 2: Removing Glass Panel
Courtesy of MAZDA MOTORS CORP.
Peel the weatherstrip off the glass panel. (See WEATHERSTRIP INSTALLATION NOTE .)
Install in the reverse order of removal.
