Sunroof Unit Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the chart.

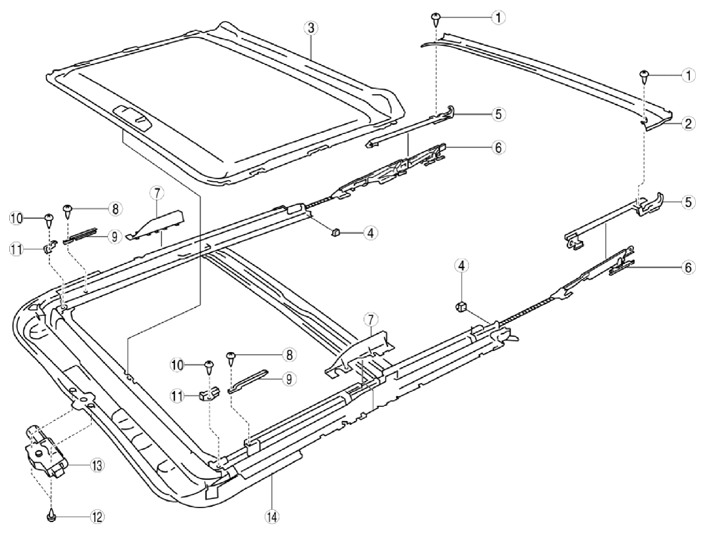

Fig 1: Exploded View Of Sunroof Unit

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Screw A
2	Drip rail
3	Sunshade (See Sunshade Disassembly Note .)
4	Rear stopper
5	Front guide (See Front Guide Disassembly Note .)
6	Decoration link (See Decoration Link Assembly Note .)
7	Screen
8	Screw B
9	Set plate
10	Screw C
11	Front stopper
12	Screw D
13	Sunroof motor
13	Sunroof frame

Assemble in the reverse order of disassembly.
