Refrigerant Line Removal/Installation: Notes

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Discharge the refrigerant. (See REFRIGERANT RECOVERY .) (See REFRIGERANT CHARGING .)
Remove the plug hole plate (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Remove the bolt and disconnect the engine ground.

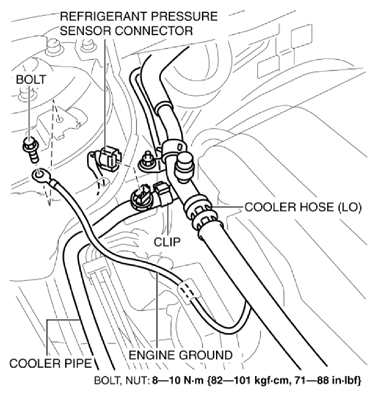

Fig 1: Identifying Refrigerant Pressure Sensor Connector, Cooler Hose (Low), Cooler Pipe, Engine Ground And Bolt Or Nut With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Disconnect the refrigerant pressure sensor connector.

Remove in the order indicated in the table. Do not allow compressor oil to spill.

CAUTION:

If moisture or foreign material enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign material out of the cycle.

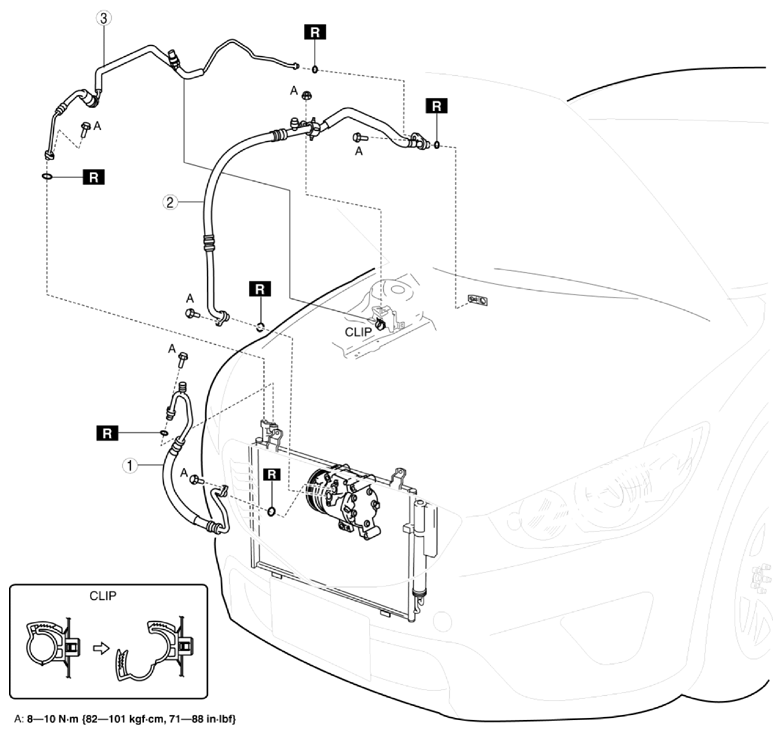

Fig 2: Refrigerant Line Related Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Cooler hose (HI) (See Refrigerant Line Installation Note (1) .) (See Refrigerant Line Installation Note (2) .)
2	Cooler hose (LO) (See Refrigerant Line Installation Note (1) .) (See Refrigerant Line Installation Note (2) .)
3	Cooler pipe (See Refrigerant Line Installation Note (1) .) (See Refrigerant Line Installation Note (2) .)

Install in the reverse order of removal.
Perform the refrigerant system performance test. (See REFRIGERANT SYSTEM PERFORMANCE TEST .)
