Refrigerant Charging: Evacuation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Open all the valves of the manifold gauge.
CAUTION:
- Close the manifold gauge valve immediately after stopping the vacuum pump. If the valve is left open, the vacuum pump oil will back flow into the refrigeration cycle and cause a decrease in the efficiency of the air conditioner.
Start the vacuum pump and let it operate for 15 min .

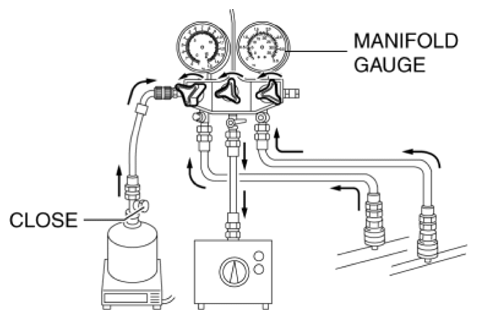

Fig 1: Starting Vacuum Pump
Courtesy of MAZDA MOTORS CORP.
Verify that high- and low-pressure side readings of the manifold gauge are at -101 kPa {-1.03 kgf/cm ² , -14.6 psi} . Close each valve of the manifold gauge.

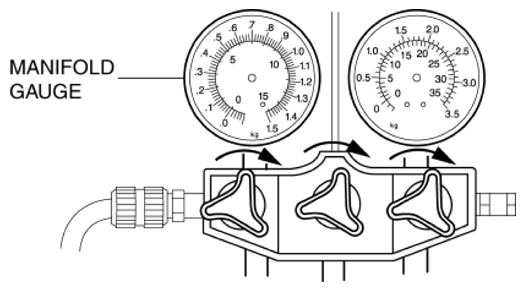

Fig 2: Inspecting High And Low-Pressure Side Readings Of Manifold Gauge

Courtesy of MAZDA MOTORS CORP.
