Electrical System: Fuse: Replacement

WARNING: This page is about a different car, the 2017 Mazda CX-5 and 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

When replacing a fuse, be sure to replace it with one of the same capacity. If a fuse fails again, the circuit probably has a short and the wiring should be inspected.
Be sure the negative battery terminal is disconnected before replacing a main fuse.

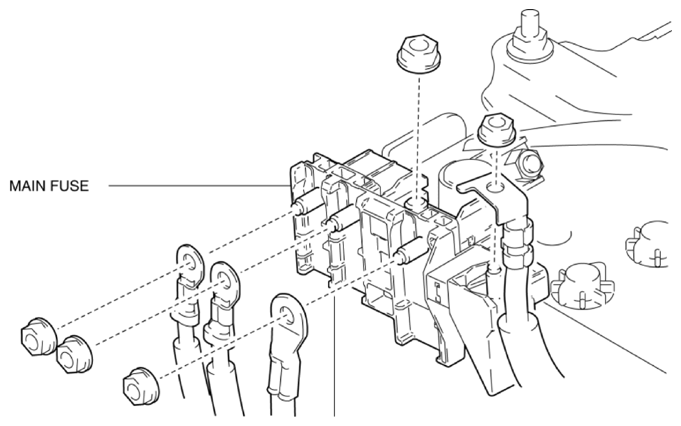

Fig 1: Disconnecting Main Fuse Negative Battery Terminal
Courtesy of MAZDA MOTORS CORP.
When replacing a pullout fuse, use the fuse puller.

Fig 2: Replacing Pullout Fuse Using Fuse Puller

Courtesy of MAZDA MOTORS CORP.
