Mounting Rubber Installation Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Install the mounting rubber so that the mounting rubber stud and the front shock absorber bracket are in position A shown in the following figure.

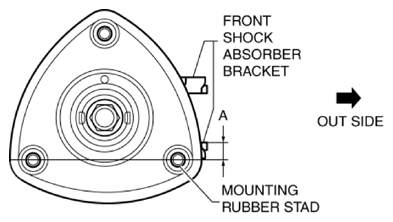

Fig 1: Identifying Front Shock Absorber Bracket Positions

Courtesy of MAZDA MOTORS CORP.
