Front Stabilizer Bushing, Front Stabilizer Bracket Installation Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Do not apply grease to the contact surface of the stabilizer bushing and the stabilizer bar. Otherwise, the stabilizer function may deteriorate.
  • Verify that there is no dirt or oil on the stabilizer bushing and the stabilizer bar. Wipe off any dirt or oil on the stabilizer bushing and the stabilizer bar.
  1. Install the front stabilizer bushing to the front stabilizer with its slit positioned rearward of the vehicle.
    Fig 1: Installing Front Stabilizer Bushing To Front Stabilizer
    G10936417Courtesy of MAZDA MOTORS CORP.
  2. Install the front stabilizer bracket to the front stabilizer bushing by hand using the following procedure.
  3. If the front stabilizer bracket cannot be installed by hand, install it using a vice.
    CAUTION:
    • If the front stabilizer bracket is installed using a vice, it could be deformed.
    • Set a cylindrically-shaped object as shown in the figure so that pressure is applied to the front stabilizer bracket flange, and install the front stabilizer bracket to the front stabilizer bushing.

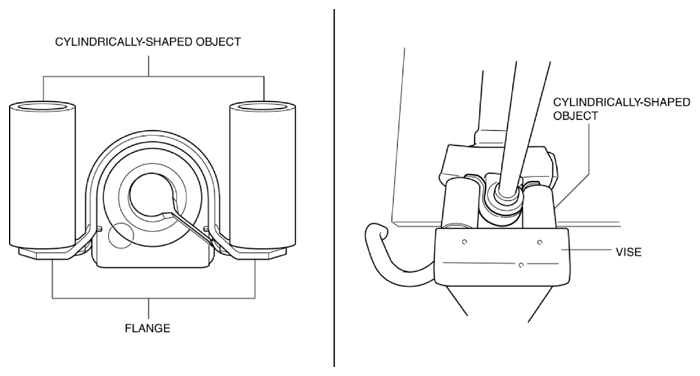

    Fig 2: Installing Front Stabilizer Bracket To Front Stabilizer Bushing
    G10936418Courtesy of MAZDA MOTORS CORP.
  4. During front stabilizer bracket installation, keep the deviation in the positions of the front stabilizer bracket and the front stabilizer bushing within the range shown in the figure.
    Fig 3: Identifying Front Stabilizer Bracket Width Dimension
    G10936419Courtesy of MAZDA MOTORS CORP.
    • W1 : 0.5 mm {0.21 in} max.
    • W2 : 2 mm {0.08 in} max.
  5. After installing the front stabilizer bracket, verify that the positions of the front stabilizer bracket and the front stabilizer bushing are within the range shown in the figure.
    Fig 4: Identifying Front Stabilizer Bracket Height Dimension
    G10936420Courtesy of MAZDA MOTORS CORP.
    • H1 : 13 mm {0.51 in} max.
  6. After installing the front stabilizer bracket, verify that the right and left-side positions of the front stabilizer bracket are within the range shown in the figure.
    Fig 5: Identifying Front Stabilizer Bracket Height (RH And LH) Dimensions
    G10936421Courtesy of MAZDA MOTORS CORP.
    • H2 : 6 mm {0.2 in} max.
  7. Place the front stabilizer component on a level workbench, and verify that it is within the range shown in the figure.
Fig 6: Positioning Front Stabilizer Component On Level Workbench
G10936422Courtesy of MAZDA MOTORS CORP.
