Intake-Air System Removal/Installation: Notes
WARNING: This page is about a different variant/trim than selected.
Replacement Part
| Intake manifold gasket | Throttle body gasket |
| Quantity: 4 | Quantity: 1 |
| Location of use: Intake manifold | Location of use: Throttle body |
WARNING:
- A hot engine and intake air system can cause severe burns. Turn off the engine and wait until they are cool before removing the intake air system.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)

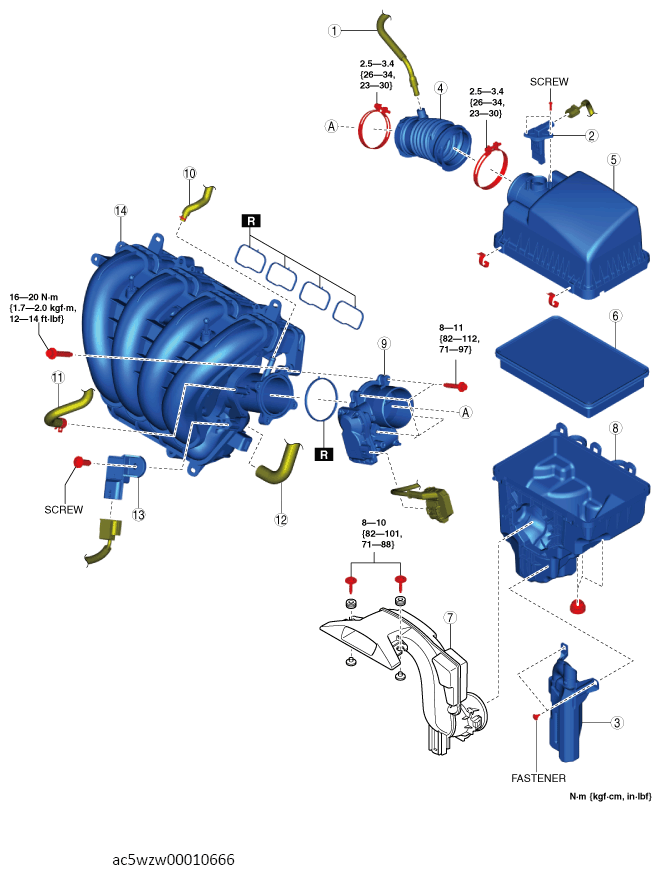

- Remove in the order indicated in the table.
- Install in the reverse order of removal.PARTS DESCRIPTION
1 Ventilation hose
(See Ventilation Hose Installation Note .)2 MAF sensor/IAT sensor No. 1
(See MASS AIR FLOW (MAF) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO. 1 REMOVAL/INSTALLATION .)3 Resonance chamber
(See Resonance Chamber Removal Note .)4 Air hose
(See Air Hose Installation Note .)5 Air cleaner cover
(See Air Cleaner Cover Installation Note .)6 Air cleaner element 7 Fresh-air duct
(See Fresh-air Duct Removal Note .)
(See Fresh-air Duct Installation Note .)8 Air cleaner case
(See Air Cleaner Case Installation Note .)9 Throttle body
(See Throttle Body Removal Note .)
(See Throttle Body Installation Note .)10 Vacuum hose
(See VACUUM HOSE REMOVAL/INSTALLATION .)11 Evaporative hose
(See Evaporative Hose Installation Note .)12 PCV hose 13 MAP sensor/IAT sensor No. 2
(See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO. 2 REMOVAL/INSTALLATION .)14 Intake manifold
(See Intake Manifold Removal Note .)
(See Intake Manifold Installation Note .)
